Conveyor Speed
Infeed: 15 – 65 m/minute
Exit: 18 – 75 m/minute
Table Size (W x D): 1662 x 2400 mm
Minimum Bundle Size (W x H x L): 200 x 20 x 300 mm
Bundle Weight: max 35 kg
Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH
Datasheet

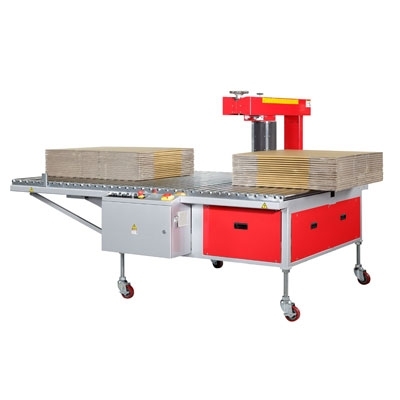

C-BT Bundle Turner is designed for turning the bundle for downstream strapping operation. It is an ideal device for connecting the casemaking line to strap in the carton flute direction.
Features
Suitable for various bundle dimensions
Table height is adjustable from 700 mm to 1000 mm
Up and down stream interlock with complete plug connection
Robust and sturdy frame
