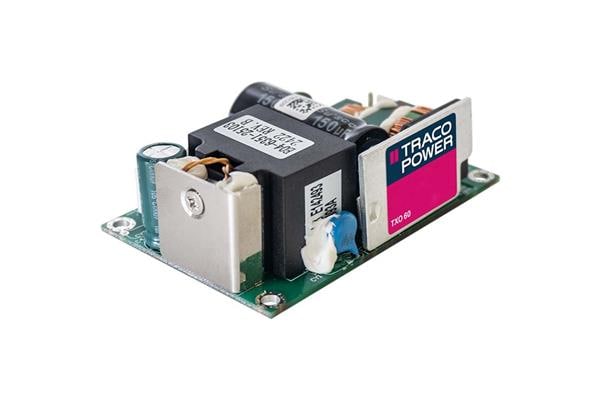

TRACO Power TXO 60-124-J ອຸດສາຫະກຳ ພາວເລີ ຊັບພລາຍ 60W 24V 2.5A 2x3 Open Frame

Width: 50.8 mm (2 in)

Height: 24 mm (0.945 in)

Length: 76.2 mm (3 in)

Industry: Industrial

Approvals: IEC62368-1, EN62368-1, UL 62368-1

Dimensions: 76.2 mm x 50.8 mm x 24 mm

Efficiency: 85 %

Unit Weight: 120 g

Output Power: 60 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Power - Convection: 4 kV

Power - Forced Air: 8 kV

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 2.5 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
