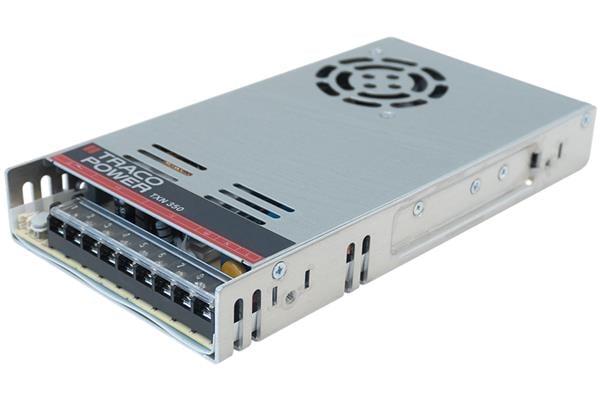

TRACO Power TXN 350-148 ອຸດສາຫະກຳ ພາວເອີ ຊັບພລາຍ 350W 48V 7.4A ກ້ອງເຫຼັ້ມເຫຼັ້ມເຫຼັ້ມເຫຼັ້ມເຫຼັ້ມເຫຼັ້ມ metal case

Width: 115 mm (4.528 in)

Height: 30 mm (1.181 in)

Length: 215 mm (8.465 in)

Industry: Industrial

Dimensions: 215 mm x 115 mm x 30 mm

Efficiency: 89 %

Unit Weight: 800 g

Output Power: 350 W

Input Voltage: 90 VAC to 264 VAC, 140 VDC to 340 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Not Regulated

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Power - Convection: 4 kV

Power - Forced Air: 8 kV

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 7.4 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
