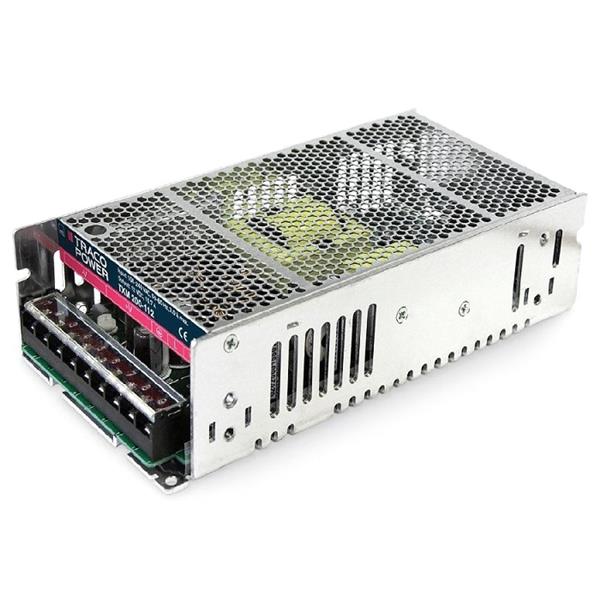

TRACO Power TXM 200-148 ຕົວແປ AC-DC 200W 48V 4.2A ລະບົບລົມລົມ PS

Width: 99 mm (3.898 in)

Height: 50.3 mm (1.98 in)

Length: 199 mm (7.835 in)

Industry: Industrial

Approvals: IEC/EN/UL60950-1

Compliance: IEC/EN/UL 60950-1

Efficiency: 88.5 %

Unit Weight: 700 g

Output Power: 200 W

Input Voltage: 90 VAC to 264 VAC, 120 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 4.2 A

Output Voltage-Channel 1: 48 VDC

Operating Temperature Range: - 20 C to + 65 C

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 20 C
