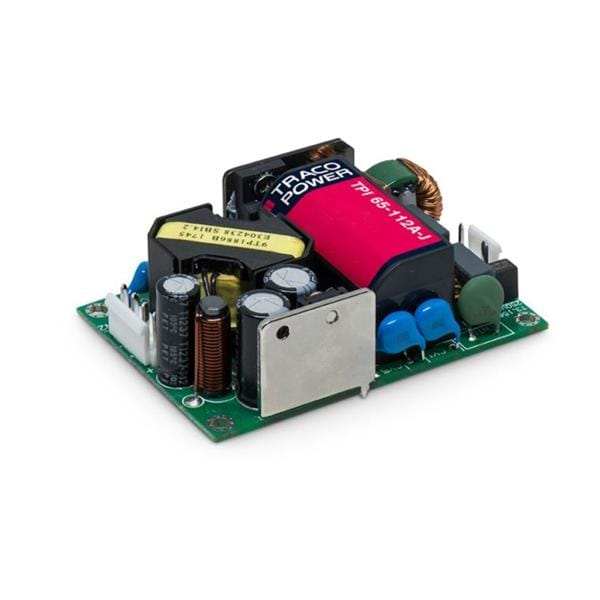

TRACO Power TPI 65-153A-JP ເພາະພະລັງ AC-DC 65W 53V 1240mA ເປີດ 3x2

Width: 50.8 mm (2 in)

Height: 24 mm (0.945 in)

Length: 76.2 mm (3 in)

Industry: Industrial

Approvals: CB, CE, IEC 62368-1, UL 62368-1

Dimensions: 76.2 mm x 50.8 mm x 24 mm

Efficiency: 93 %

Unit Weight: 226.800 g

Output Power: 65 W

Input Voltage: 85 VAC to 264 VAC, 120 VDC to 370 VDC

Mounting Style: PCB

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 1.698 A

Output Voltage-Channel 1: 53 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
