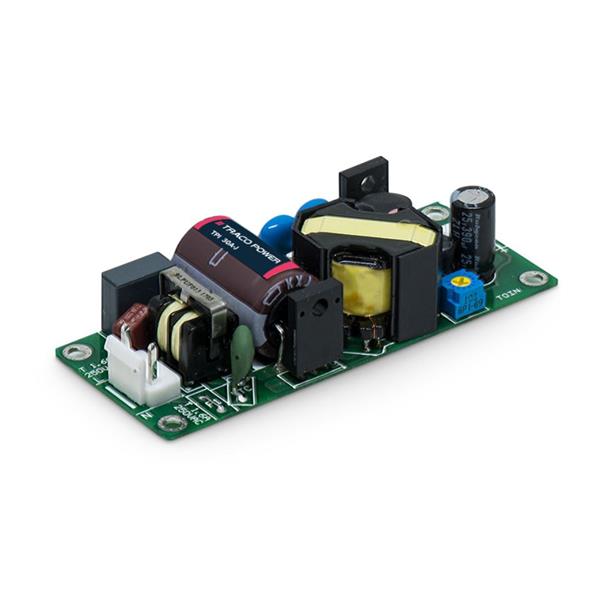

TRACO Power TPI 30-136A-JP ອິນເພີຈ AC-DC 30W 36V 840mA ເປີດ 3.34x1.36

Width: 34.6 mm (1.362 in)

Height: 19.6 mm (0.772 in)

Length: 84.8 mm (3.339 in)

Industry: Industrial

Approvals: CB, CE, IEC 62368-1, UL 62368-1

Dimensions: 84.8 mm x 34.6 mm x 19.6 mm

Efficiency: 89 %

Unit Weight: 60.500 g

Output Power: 30 W

Input Voltage: 85 VAC to 264 VAC, 120 VDC to 370 VDC

Mounting Style: PCB

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 1.111 A

Output Voltage-Channel 1: 36 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
