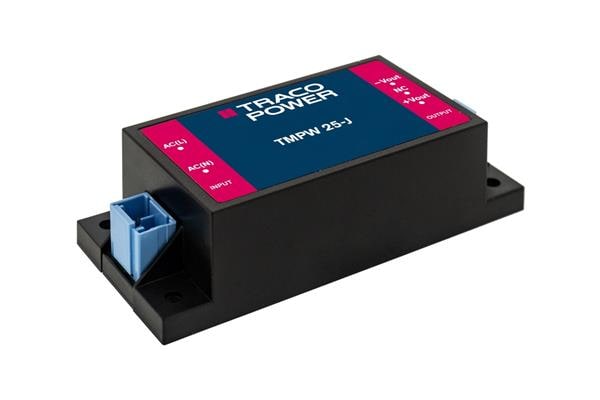

TRACO Power TMPW 25-105-J 3-Phase 20W 5.1V 3922mA Encap ຕິດຕັ້ງໃນກະຕ່າງ

Width: 38.1 mm (1.5 in)

Height: 24.1 mm (0.949 in)

Length: 88.4 mm (3.48 in)

Industry: Industrial

Approvals: EN 60335-1, IEC/EN/UL 62368-6

Dimensions: 38.1 mm x 24.1 mm x 88.4 mm

Efficiency: 84 %

Unit Weight: 100 g

Output Power: 20 W

Input Voltage: 90 VAC to 305 VAC, 100 VDC to 250 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 3.922 A

Output Voltage-Channel 1: 5.1 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
