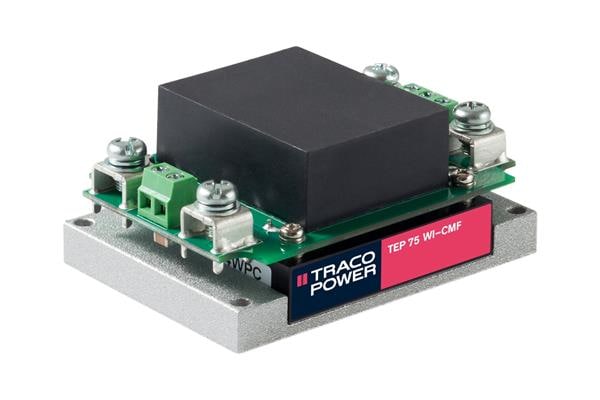

TRACO Power TEP 75-4810WI-CMF ປະເພດຜະລິດຕະພັນທີ່ແຍກຕົວ: DC/DC; ຮູບແບບການຫຸ້ມ: ອຸປະກອນຕິດຕັ້ງຢູ່ໃນກະແຈສ໌ດ໌ມີຕົວກັນສະຫຼຸບ EMI; ພະລັງງານຂາຍອອກ (W): 75; ແຮງແລະວັດຕິດຕັ້ງເຂົ້າ: 9-36 VDC; ຂາຍອອກ 1 (Vdc): 3.3; ຂາຍອອກ 2 (Vdc): N/A; ຂາຍອອກ 3 (Vdc): N/A

Width: 48.3 mm

Height: 12.7 mm

Length: 61 mm

Efficiency: 88 %

Unit Weight: 287 g

Output Power: 75 W

Input Voltage: 18 V to 75 V

Mounting Style: Chassis

Isolation Voltage: 2.25 kV

Number of Outputs: 1 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 20 A

Output Voltage-Channel 1: 3.3 V

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 40 C
