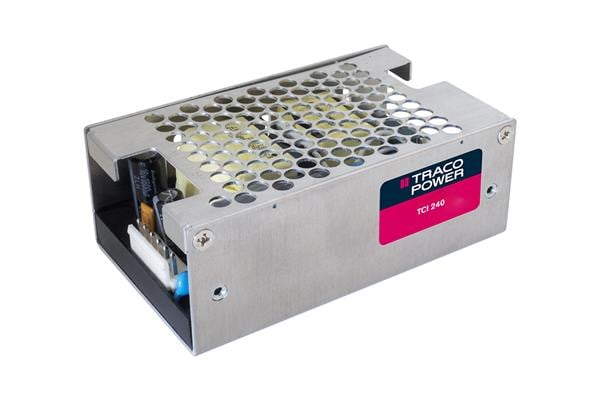

TRACO Power TCI 240-148-J ອະຊີ/ດີຊີ ພາວເລີ້ມອຸດສາຫະກຳ 240W 48V 5A ກະບອກເຫຼັ້ມເຫຼັ້ມກະທົບລະບາຍຄວາມຮ້ອນ

Width: 62.5 mm (2.461 in)

Height: 39.2 mm (1.543 in)

Length: 104 mm (4.094 in)

Industry: Industrial

Dimensions: 62.5 mm x 104 mm x 39.2 mm

Efficiency: 94 %

Unit Weight: 365 g

Output Power: 240 W

Input Voltage: 90 VAC to 264 VAC, 127 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Isolation Voltage: 4.25 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 30 C
