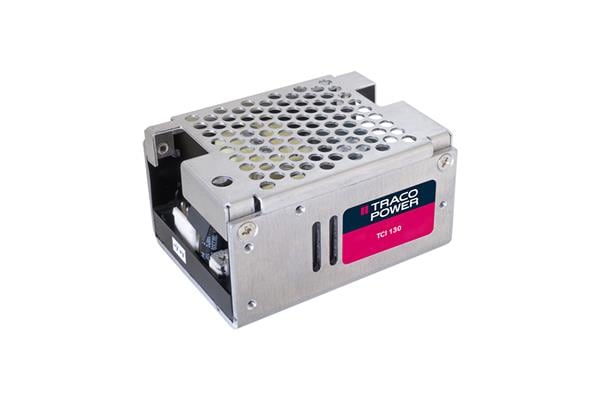

TRACO Power TCI 130-148-J ອະຊີ/ດີຊີ ພາວເອີ ອຸດສາຫະກຳ 130W 48V 2708mA ກະບອກເຫຼັ້ມເຫຼັ້ມ ລະບົບລົມລົງ

Width: 59.7 mm (2.35 in)

Height: 43.2 mm (1.701 in)

Length: 80 mm (3.15 in)

Industry: Industrial

Dimensions: 59.7 mm x 80 mm x 43.2 mm

Efficiency: 91 %

Unit Weight: 292 g

Output Power: 130 W

Input Voltage: 90 VAC to 264 VAC, 127 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Isolation Voltage: 4.25 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 2.708 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 30 C
