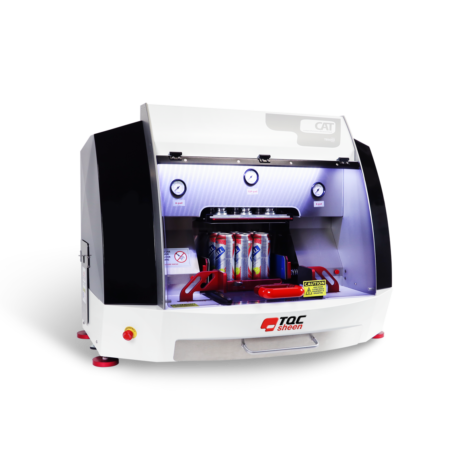

TQCSheen TB5000 ການທົດສອບການຂັດທີ່ສົມບູນ (12.7~50.8mm, 150~1000ml)
Mass: 125kg/ 276lbs
Dimensions: 1050x790x760mm/ 41.3×31.1×29.9inch
Stroke length: 12.7–50.8mm/0.5–2 in
Frequency: 0–2.5Hz
Ramp up/down time: 0.25Hz per cycle
Test duration: 0 to 24 hours
Pressure top cylinder: 0 to 6 bar/0 to 87 psi
Pressure side cylinders: 0 to 6 bar/0 to 87 psi
Can size: 150–1000ml/ 5.07–33.8 fl. Oz. (us) / 5.28–35.2 fl. Oz. (uk)
Min / max can diameter: 53–84mm/ 2.1–3.3inch
Min / max can height: 88–205mm/3.5–8.1inch
Operating temperature: 0-50°C/ 32-122°F
Operating humidity: 0 – 90%rH (non-condensing)
Power: 100–240VAC/50–60Hz
Max. Power consumption: 265 watt
Air supply: 8 bar ±20%
Noise level: <70dB
Scope of supply:
TQC Comprehensive Abrasion Test + Power cord + User and installation manual
Laptop computer with Windows 10 + CAT control application + USB cable
Three sets (60, 80, and 100mm) of two side plate assembly + top pressure plate assembly + bottom can carrier plate
5m air tube Ø6mm + 4mm hexagonal wrench + can positioning bar
