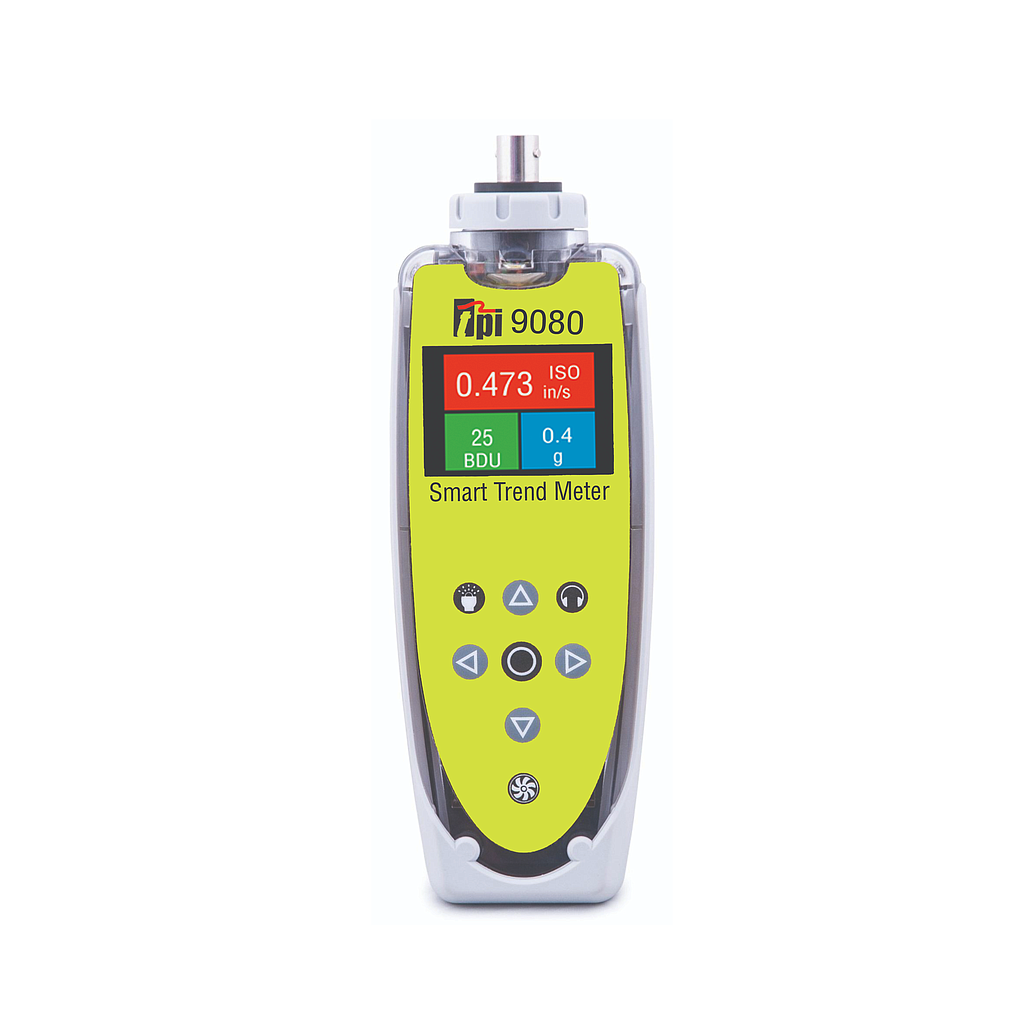

TPI 9080 ເຄື່ອງວິເຄາະການສັ່ນສະເທືອນ
Size: 200 mm x 60mm x 26mm
Weight: 280g (not including magnet)
Environmental:
Water, Sand & Dust: IP67 Waterproof
Operating: 0°C to 50°C
Storage: -20°c to 70°C
Power supply: 2 x AA batteries
Battery life: Auto power OFF - typically 20 hours continuous operating time
depending on brightness setting.
Frequency range: 2 Hz to 1kHz (ISO) 1 kHz to 10 kHz (BOU)
Max frequency resolution:
1.25 Hz @ 800 lines FFT setting
Acceleration in g
Velocity in mm/s (or inch/s)
Bearing noise in BOU (bearing damage units)
Displacement (mm, microns, inch)
Displayed Frequency Units: Hertz (Hz), RPM or CPM
Input range: User selectable with accelerometer sensitivity
Dynamic range: 96 dB (0.01g resolution)
VA diagnostic bands (RPM = run speed):
Unbalance 1x RPM
Alignment 2x RPM
Looseness 3x RPM
Accessories:
• A9081 PC docking cradle - USB connection
• A9087 Nylon carrying case
Options
• A9082 Strobe attachment
• A9080 Bluetooth ear defenders/headphones
• A9084 100mm (4 inch) stinger
• A9084 Vibtrend software full version
