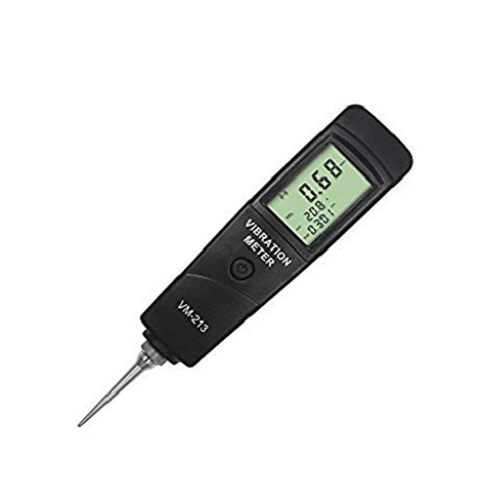

Total Meter VM-213 ເຄື່ອງວັດແທກຄວາມສັ່ນສະເທືອນ (0.1 ~ 300 m/s², 10 Hz ~ 10 kHz)

Measuring Range

Acceleration: 0.1 ~ 300 m/s², Equivalent Peak 985 ft/s²

Velocity: 0.01 ~ 300 mm/s RMS, 0.000 ~ 13.0 inch/s

Displacement: 0.001 ~ 3.000 mm, 0.04 ~ 120.0 mil Peak-to-Peak

Frequency Range

Acceleration: 10 Hz ~ 10 kHz

Velocity: 10 Hz ~ 1 kHz

Displacement: 10 Hz ~ 1 kHz

Accuracy: ±10% of reading + 2 digits

Metric/Imperial Conversion: Yes

Max Value Hold: Yes

Power Off: Manual power off or auto power off

Data Output: USB, RS-232

Operating Conditions

Temperature: 0 ~ 50°C

Humidity: < 90%RH

Power Supply: Lithium Battery

Dimensions: 202 × 43 × 23 mm (8.0 × 1.7 × 0.9 inch)

Weight: 130 g (including batteries)

Standard Accessories

Main Unit

Carrying Case

Manual Book

Optional Accessories

RS-232 Data Cable with Software

Bluetooth Data Adapter with Software
