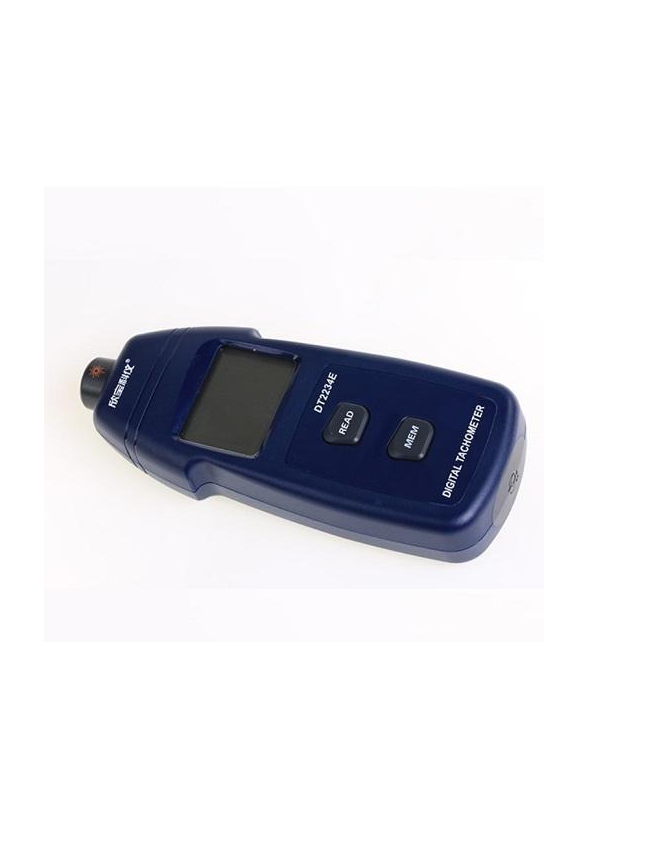

Total Meter DT2234E ເຄື່ອງວັດແທກການຕິດຕໍ່ທີ່ບໍ່ຕິດຕໍ່ (2.5 ~ 99999 RPM)

Display: 5-digit LCD, digit height 18mm

Measuring range: 2.5 ~ 99999 RPM (r/min)

Resolution:

0.1 RPM (2.5 ~ 999.9 RPM)

1 RPM (above 1000 RPM)

Accuracy: ± (0.05% + 1 digit)

Response time: 0.6s (> 100 RPM)

Range selection: automatic

Memory: stores Max, Min, last measured value in one measurement and can store 500 instantaneous values

Time base: quartz crystal

Detection distance: 50 – 500 mm

Dimensions: 160×74×37mm

Weight: 180g

Power supply: 3 x 1.5V AAA (UM-4)

Power consumption: 35mA

Operating conditions: 0 – 400°C

Accessories:

1 main unit

3 reflective tapes (190mm×11mm)

1 user manual.
