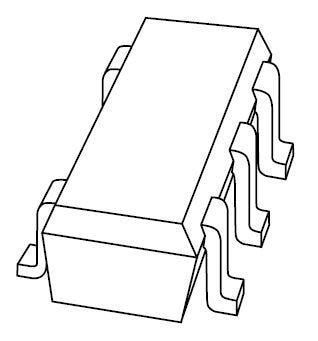

Toshiba TA75S558FTE85LF ເອັບແອມປະຕິບັດງານ x34 1 ວົງຈອນ OP AMP

Width: 1.6 mm

Height: 1.1 mm

Length: 2.9 mm

Shutdown: No Shutdown

Technology: Bipolar

Supply Type: Dual

Unit Weight: 14 mg

Amplifier Type: Low Noise Amplifier

Mounting Style: SMD/SMT

SR - Slew Rate: 1 V/us

Voltage Gain dB: 100 dB

Number of Channels: 1 Channel

Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V

Supply Voltage - Max: 18 V

Supply Voltage - Min: 4 V

Pd - Power Dissipation: 200 mW

Ib - Input Bias Current: 500 nA

Operating Supply Current: 2.5 mA

Operating Supply Voltage: +/- 4 V to +/- 18 V

Output Current per Channel: 40 mA

Vos - Input Offset Voltage: 6 mV

Maximum Dual Supply Voltage: +/- 18 V

Minimum Dual Supply Voltage: +/- 4 V

GBP - Gain Bandwidth Product: 3 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

CMRR - Common Mode Rejection Ratio: 70 dB
