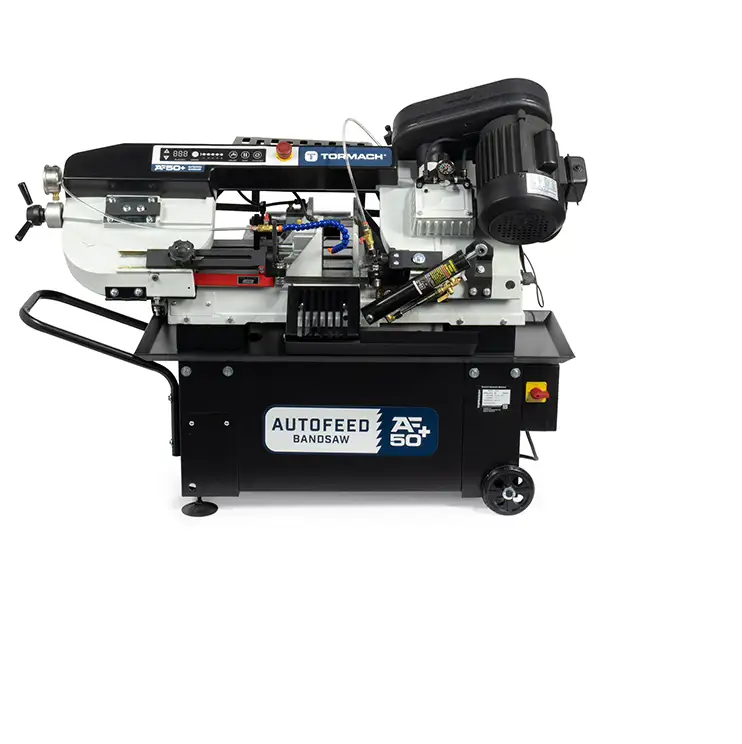

Tormach AF50+ ເລື່ອຍເບນອັດຕະໂນມັດ
Capacity
Cut Lengths: 0.157 in. to 50 in. (4 mm to 1270 mm)
Max Material Weight: 250 lbs
Material Remnant Length: 10 in.
Maximum Parts per Program: 999
Rectangular Stock Capacity: 6 in. tall × 8 in. wide (152 mm × 203 mm)
Round Stock Capacity: 7 in. (178 mm) diameter
Blade
Motor Power: 1 hp (3/4 kW)
Blade Speeds (60 Hz): 90, 134, 195, 255 ft/min (27, 41, 59, 78 m/min)
Blade Speeds (50 Hz): 70, 110, 160, 210 ft/min (22, 34, 49, 64 m/min)
Blade Length: 93 in. (2362 mm)
Blade Width: 0.75 in. (19 mm)
Blade Thickness: 0.035 in. (0.9 mm)
Machine Requirements
Minimum Width: 60 in. (1.53 m)
Minimum Depth: 36 in. (0.91 m) plus the length of stock
Minimum Height: 67 in. (1.71 m)
Power: Single-Phase 115 VAC, 15A breaker, meets Canadian and U.S. safety/electrical standards
Compressed Air Source: 90 psi to 120 psi (620 kPa to 827 kPa)
Features
Pneumatic Clamping System
Hydraulic Feed Control
Integrated Coolant System: 2.65 gal (10 L) capacity
Movable Design
Blade Tension Indicator for fast and easy tension adjustment after blade changes
