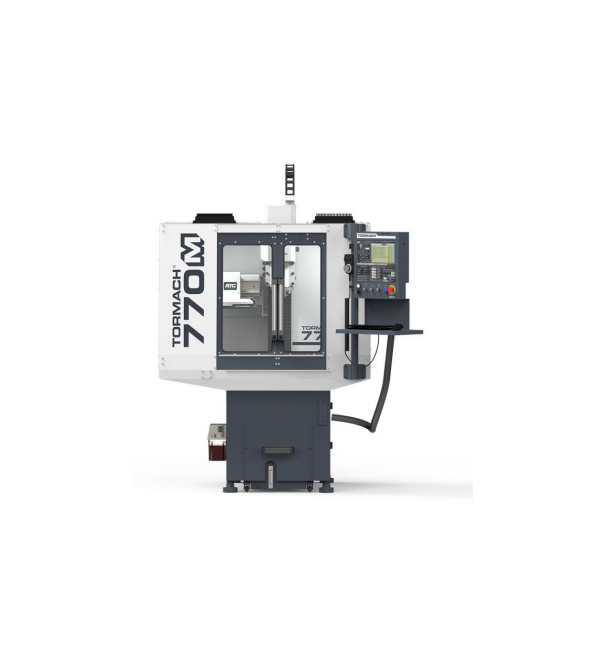

Tormach 770M ເຄື່ອງ CNC Milling
Travels
X-Axis: 14 in. (356 mm)
Y-Axis: 7.5 in. (191 mm)
Z-Axis: 13.25 in. (337 mm)
Spindle
Spindle Power: 1.5 hp (1.12 kW)
Maximum Speed: 10,000 rpm
Transmission: Poly-V Belt
Spindle Taper: R8
Threading: Tension/Compression, Auto-Reversing, Thread Milling
Maximum Feed Rate
X- and Y-Axis: 135 IPM (3.43 m/min)
Z-Axis: 110 IPM
Axis Motor
Stepper Driven
Power
Power Required: Single-Phase 115VAC, 50/60Hz, 15A breaker
Machine Specifications
Table Size: 26 in. × 8 in. (660 mm × 203 mm)
Table Slots: 5/8 in. (15.9 mm), 3 slots
Spindle Nose to Table Max Clearance: 14.25 in. (362 mm)
Spindle Centerline to Machine Column: 8.6 in. (218 mm)
Machine Size: 56 in. × 48.5 in. (1.4 m × 1.2 m)
Overall System Height: 88 in. (2.2 m)
Typical System Weight (Factory Assembled): 1500 lbs. (680 kg)
