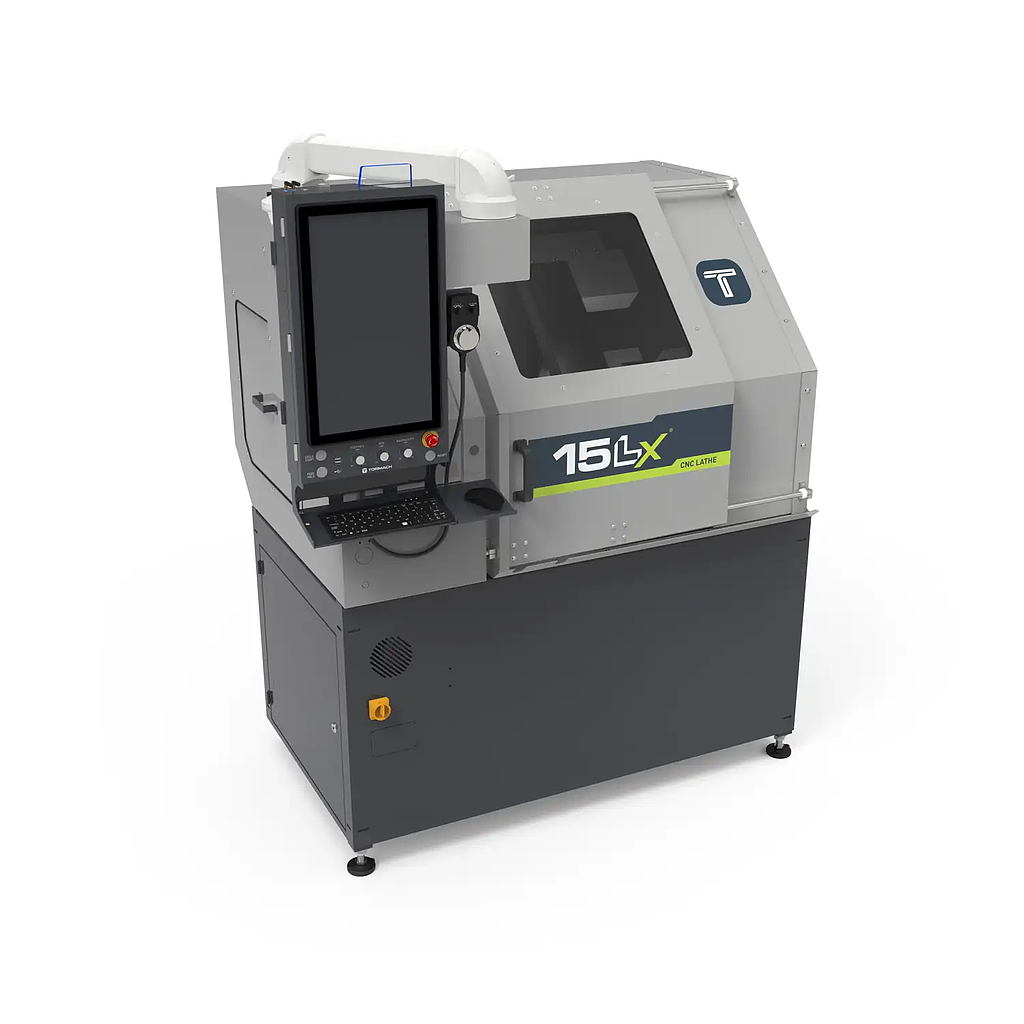

Tormach 15L LATHE ເຄື່ອງກຶງ CNC
Machine Specifications
Recommended Footprint: 72 in. × 42 in. (1829 mm × 1067 mm)
Typical System Weight: 1,800 lbs. (816 kg)
Swing Over Bed Diameter: 15 in. (381 mm)
X-Axis Travel: 10 in. (254 mm)
Z-Axis Travel: 12 in. (305 mm)
Recommended Chuck Size: 6 in. (152 mm)
Coolant Tank Size: 10 gallon
Motion
Max Feed Rate X/Z: 60 IPM (1.52 m/min)
Spindle
Spindle Power: 3 hp (2.24 kW)
Low Speed: 180 to 2,500 RPM
High Speed: 250 to 3,500 RPM
Spindle Taper: 5C (with removable insert)
Spindle Bore Diameter: 1.53 in. (with 5C insert removed)
Spindle Nose: D1-4 Camlock Mount
Control
Standard Feature: Rigid Tapping
Standard Feature: Single Point Threading
Power
Power Required (Primary): Single-Phase, 230 VAC*, 50/60Hz, 20A Breaker
Power Required (Secondary): Single-Phase, 115 VAC, 50/60Hz, 20A Breaker
Supplied Plug: NEMA L6-20P plug; requires NEMA L6-20R receptacle
Recommended Voltage: ±10%, best performance at 240 VAC
