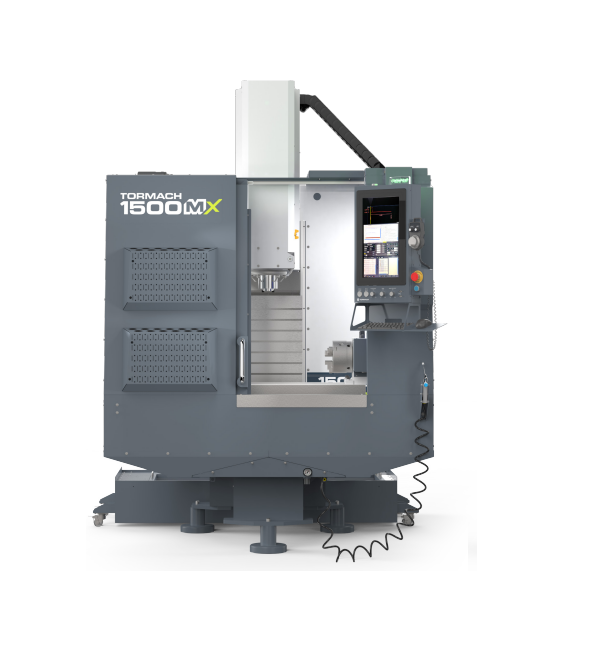

Tormach 1500MX ເຄື່ອງ CNC Milling
Travels:
X-Axis: 19.7 in. (500 mm)
Y-Axis: 13.8 in. (350 mm)
Z-Axis: 14 in. (356 mm)
Spindle
Spindle Power: Continuous Power: 4 hp (3 kW)/ Peak Power: 6 hp (4.5 kW)
Maximum Speed: 10,000 RPM
Transmission: Synchronous Belt
Spindle Taper: BT30
Threading: Rigid Tapping, Tension/Compression, Thread Mill
Maximum Feed Rate
X- and Y-Axis: 1200 IPM (30.5 m/min)
Z-Axis: 600 IPM (15.2 m/min)
Axis Motor: 23-bit absolute encoded ; Servo Driven
Power
Power Required: Single-Phase 230 Vac, 50/60 Hz, 30A breaker
Machine Specifications
Table Size: 35 in. × 12.75 in. (0.9 m × 0.3 m)
Table Slots: 5/8 in. (15.9 mm)(three slots)
Spindle Note to Table Max Clearance: 17.7 in. (450 mm)
Spindle Centerline to Machine Column: 14.7 in. (373 mm)
Machine Size: 86 in. × 104 in. (2.2 m × 2.6 m)
Overall System Height: Base Machine - 94 in. (2.4 m); Side Doors Open - 108 in. (2.7 m)
Typical System Weight: 2800 lbs. (1270 kg)
