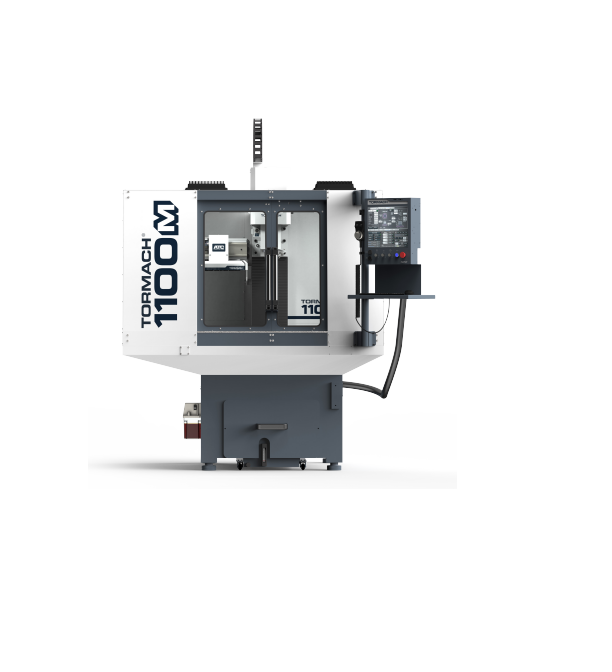

Tormach 1100M ເຄື່ອງ CNC Milling
Travels
X-Axis: 18 in. (457 mm)
Y-Axis: 11 in. (279 mm)
Z-Axis: 16.25 in. (413 mm)
Spindle
Spindle Power: 2 hp (1.49 kW)
Maximum Speed: 7,500 rpm
Transmission: Poly-V Belt
Spindle Taper: R8
Threading: Tension/Compression, Auto-Reversing, Thread Milling
Maximum Feed Rate
X- and Y-Axis: 110 IPM (2.79 m/min)
Z-Axis: 90 IPM (2.29 m/min)
Axis Motor
Stepper Driven
Power
Power Required: Single-Phase 230VAC, 50/60Hz, 20A breaker
Machine Specifications
Table Size: 34 in. × 9.5 in. (863 mm × 241 mm)
Table Slots: 5/8 in. (15.9 mm), 3 slots
Spindle Nose to Table Max Clearance: 18 in. (457 mm)
Spindle Centerline to Machine Column: 11 in. (279 mm)
Machine Size: 69 in. × 56.5 in. (1.8 m × 1.4 m)
Overall System Height: 96 in. (2.4 m)
Typical System Weight (with ATC): 1850 lbs. (839 kg)
