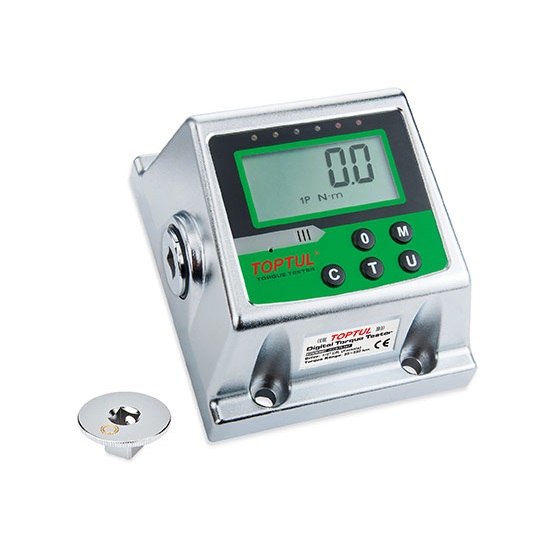

TOPTUL IEB035350 ເຄື່ອງທົດສອບແຮງບິດດິຈິຕອນ (3/8" Dr. & 1/2" Dr. (F))

Torque Accuracy: ± 1% or ±3 digit accuracy

Operating Mode: Peak Hold Mode / Track Mode / First Peak Mode

Units of Measurement: Nm, Ft-Lb, In-Lb, Kg-cm

Operating Mechanism: Clockwise only

Operation Temperature: +5°C ~ +40°C

Storage Temperature: -20°C ~ +70°C

Humidity: Up to 90% non-condensing

Power Supply (AC/DC Adaptor):

AC 100-240V at 50-60Hz input

DC 12V 1A output

Bright LED: 6 LEDs

PC Connection: USB cable

Dimension: 162(L) x 144(W) x 91(H)

DRIVE: 3/8" Dr. & 1/2" Dr. (F)

Torque Calibration Range

(Nm): 35.0~350.0

(Ft-Lb): 25.8~258.1

(In-Lb): 310~3097

(Kg-cm): 357~3571
