TOP Kogyo DH030-10BN Digital Ratchet-type Torque Wrench (6~30N･m)

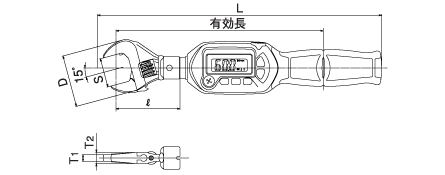

Head outer diameter: φ10

Effective length: 178mm

Overall length: 243mm

Weight: 382g

Display range: 0.3~ N･m

Range of use: 6~30 N･m

Minimum display value: 0.01 (N m)

Jaw opening size S: 0~20mm

Head outer diameter D: 46mm

Thickness T1: 6mm

Thickness T2: 10mm
