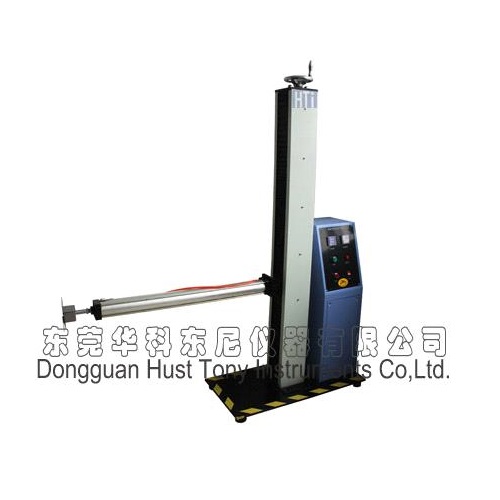

TONYHK TNJ-005 Drawer Repeat Pull-push Tension Tester
Drawer size: 150-1300mm/adjustable
Loading: 0-100N, overloading shutdown can be set
Speed: 0.3—2m/s
Test stroke absolute error: ≤±0.25m
Stroke control range: 0.05—99.9km
Degree: 0.25m
Measure time absolute error: 0.1secs
The parameters above can be adjusted according to customer’s requirement,such as the damage range,stroke,time to shutdown. Etc.
Machine size: (L*W*H): 800*600*1200mm
Standards:
GB/T 10357.5-1989 Furniture Mechanical Test, Cabinets Strength and durability
Refer to QB/T2454-1999《Furniture hardware drawer slideway requirements and inspection》
