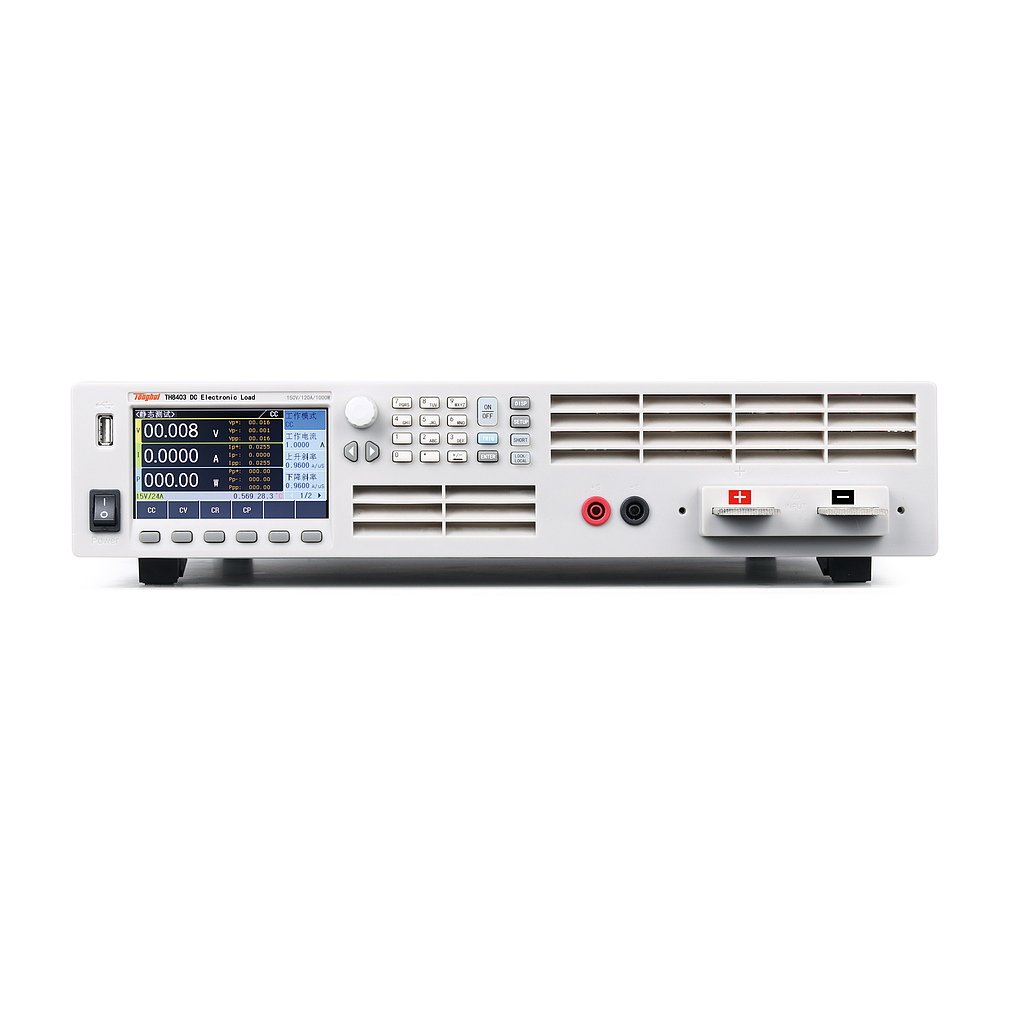

Rated parameters:
+ Power: 2000W
+ Voltage: 0~15V; Current: 0~24A
+ Voltage: 0~150V; Current: 0~240A
+ Minimum operating voltage : 1.5V@240A
+ Minimum rise time: 20μS
CV Mode
+ Scope: 0~15V; Resolution: 1mV
+ Scope: 0~150V; Resolution: 10mV
+ Accuracy: 0.05%+0.05%FS:
CC Mode:
+ Scope: 0~6A; Resolution: 0.1mA
+ Scope:0~240A; Resolution: 1mA
+ Accuracy: 0.05%+0.05%FS
CR Mode:
+ Scope: 0.01Ω~15kΩ
+ Resolution: 0.05Ω
+ Accuracy: 1%
CP Mode:
+ Scope: 0~2000W
+ Resolution: 10mW
+ Accuracy:: 0.5%+0.1%FS
Dynamic Mode:
+ Scope: 20μs ~ 60S
+ Resolution: 2μs
+ Accuracy: 2uS+100ppm
+ Rise rate: 4.8A/ms~12A/µS
Voltage measurement
+ Scope: 0~15V ; Resolution: 1mV
+ Scope: 0~150V ; Resolution: : 10mV
+ Accuracy: 0.08%+0.05%FS
Current measurement
+ Scope: 0~24A ; Resolution: 0.1mA
+ Scope: 0~240A ; Resolution: 1mA
+ Accuracy: 0.08%+0.05%FS
Ripple measurement:
+ Scope: 0~15V/0~150V
+ Bandwidth: 250kHZ
+ Accuracy: 0.10%
Protection function: Overvoltage protection (OVP) Overcurrent protection (OCP) Overpower protection (OPP)
Store: Internal 40 groups
Specification:
Volume (mm) (W*H*D): 430mm*88mm*529mm
weight: 18kg
power supply: Power supply voltage: 220V (1±10%), power supply frequency: 50Hz/60Hz (1±5%), power consumption: <50VA
Temperature and humidity: 0 ℃ ～40 ℃ , humidity : < 90%RH
