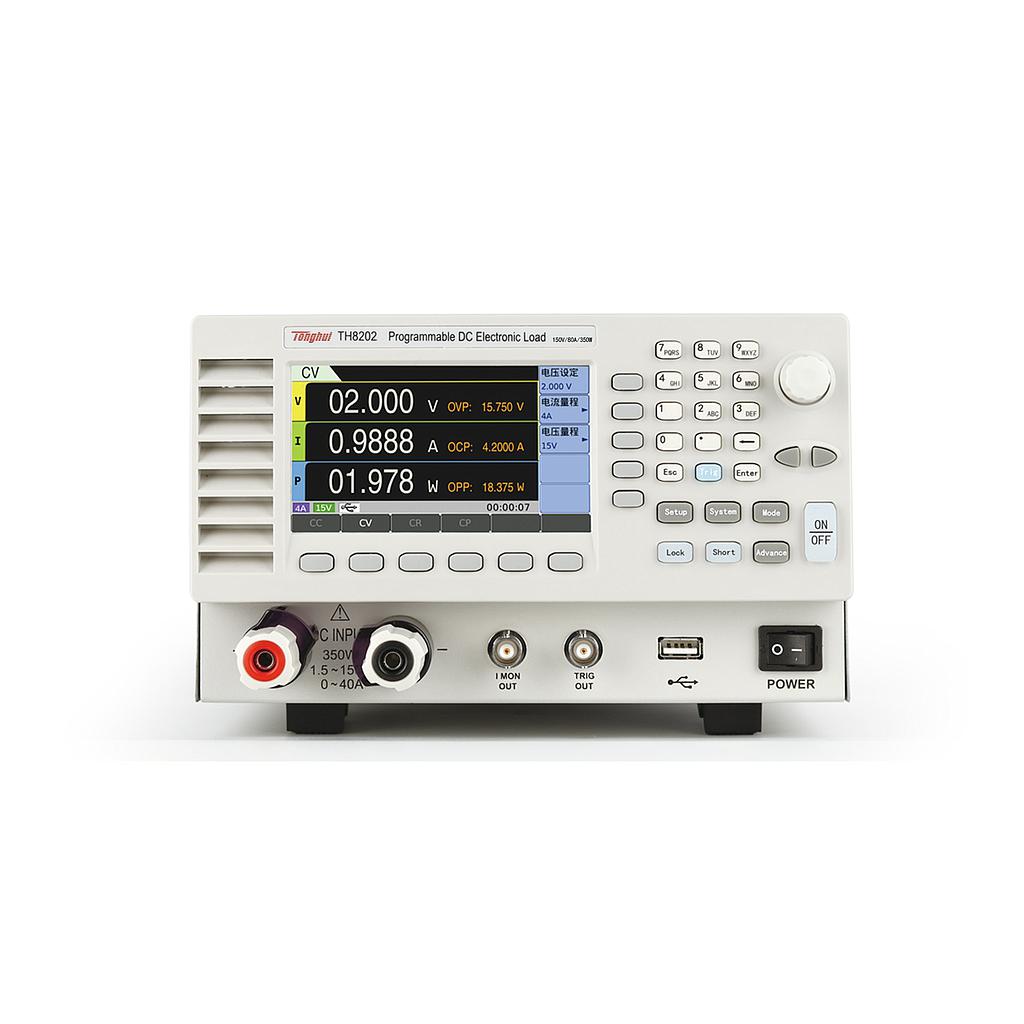

Tonghui TH8202 Programmable DC Load (80A; 350W)

Input Voltage: 1-150V

Current: 0-800mA/0-8A/0-80A

Power: 0-3.5W/0-35W/0-350W

Static Mode: CC mode (constant current mode), CR mode (constant resistance mode), CV mode (constant voltage mode), CP mode(constant power mode)

Accuracy: 0.2% F.S.

Dynamic Mode:

Frequency Range: 100Hz~50kHz/0.01Hz~1kHz

Accuracy: 1µs/1ms+100ppm

External Waveform Mode (20kHz) CC: Control level range 0~10V accuracy: 0.5%F.S.

Range: 0-800mA/0-8A/0-80A

Soft Start: Setting range: 0~500ms; accuracy ±(30%+100µs)

Protection function: Overvoltage Protection (OVP) Overcurrent Protection (OCP) Over Power Protection (OPP) Over Temperature

Interface: Handler、RS232、USB DEVICE、USB HOST、LAN
