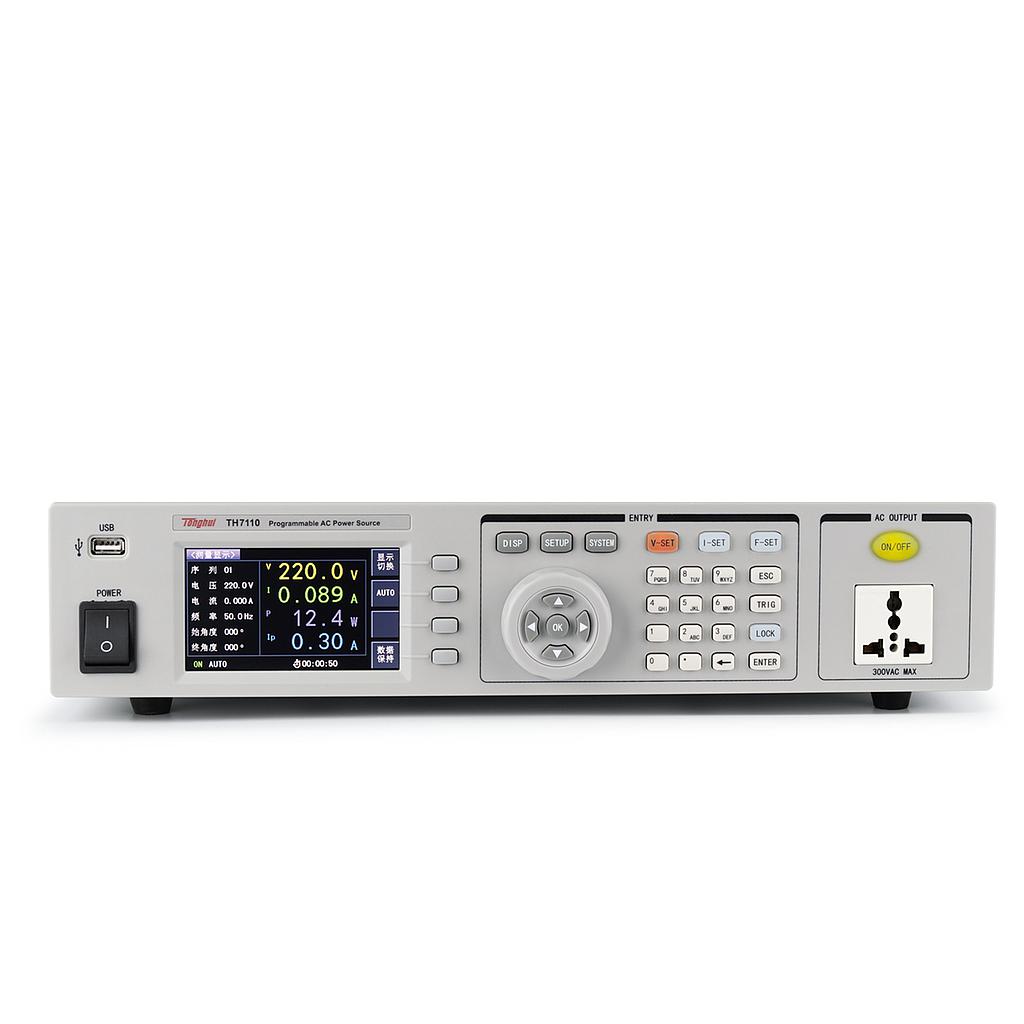

Tonghui TH7110 ໂປຣແກຣມ AC Power Supply (1000W; 300V; 500Hz)
Output Parameters
Rated Power: 1000W
Output Voltage: 0～300V
Output Frequency: 45.0Hz～500Hz
Maximum Current (RMS)
0-150V:8.4A
0-300V:4.2A
Maximum Current (Peak):
0-150V:33.6A
0-300V:16.8A
Total Harmonic Distortion (THD): at 45.0 ~ 500Hz, ≤ 0.5% (resistive load)
Common parameters:
- Phase: 1Ø/2W
- Crest Factor: ≥4
- Linearity Adjustment Rate: 0.1%±10%
- Load Regulation: 0.5%(resistive load)
- Response Time: <100uS
Setting Parameters:
- Voltage: ~ 300V; 0.1V; ±0.5%+2 digits
- Frequency: 45.0Hz ~ 500Hz; <100Hz: 0.1Hz/≥100Hz: 1Hz; ±0.02%
- Initial / Final Phase Angle: ~ 359°; 1°; ±1°(45 ~ 65Hz)
Measurement Parameters:
- Voltage: ~ 300V; 0.1V; ±0.5%+2 digits
- Frequency: 45.0Hz ~ 500Hz; <100Hz: 0.1Hz/≥100Hz: 1Hz; ±0.1Hz
Current
0-150V:0.000 ~ 8.400A
0-300V:0.000 ~ 4.200A
Resolution: 0.001A
Accuracy: ±0.5%+5 digits
Peak Current
0-150V: 0.00 ~ 33.60A
0-300V:0.00 ~ 16.80A
Resolution: 0.01A
Accuracy: ±5%+2 digits
Power:
Range: ~ 1000W
Resolution: 0.1W
Accuracy:±0.6%+5 digits
Power Factor: 0.001-1.000; 0.001; ±2%+2 digits
