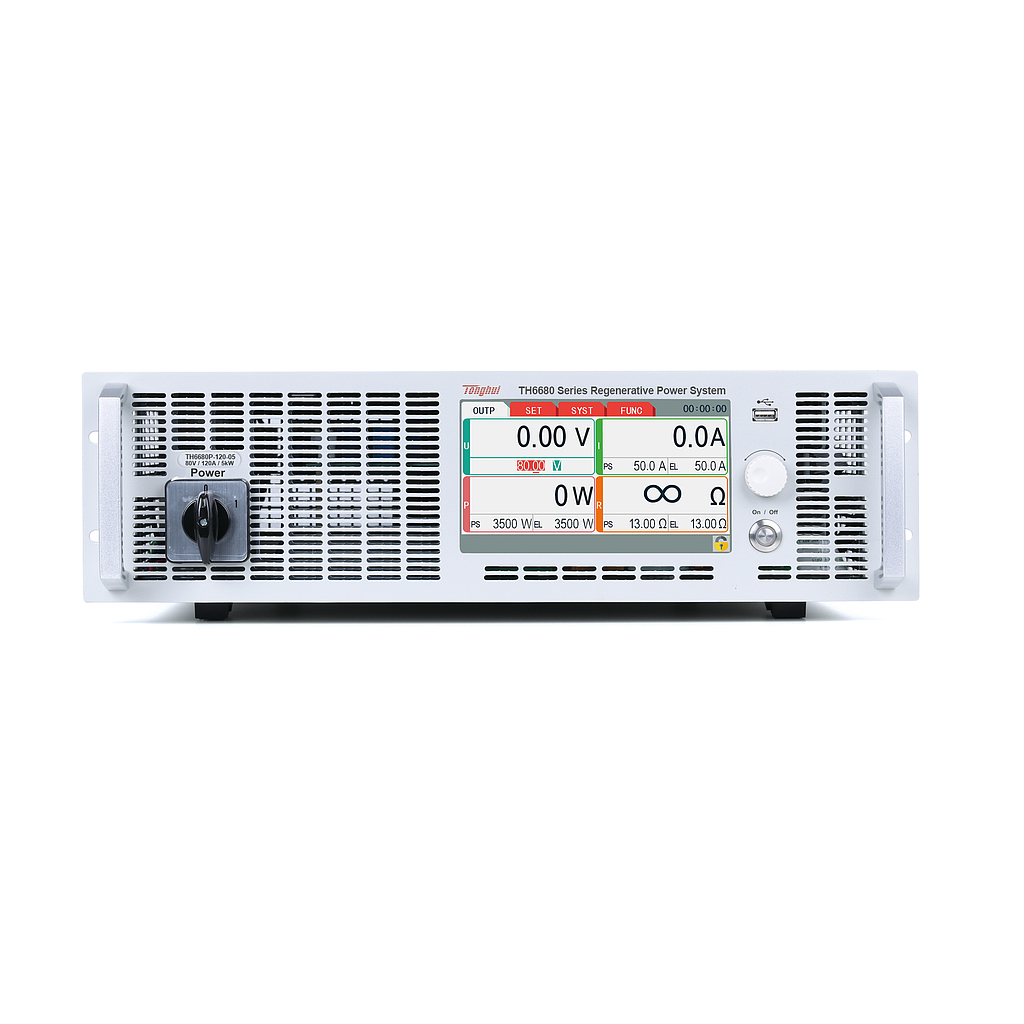

Tonghui TH6680P-240-10 ແຫລ່ງຈ່າຍໄຟ DC ທີ່ມີກຳລັງໄຟສູງແບບຕັ້ງໂປຣແກຣມໄດ້ (10kW 80V 240A)
Rated output (power mode):
+ Power: 0-10kW
+ Voltage: 0-80V
+ Current: 0-240A
+ Internal resistance: 0.01-13 Ω
Load regulation rate:
+ Voltage: ≤0.05%FS
+ Current: ≤0.15%FS
+ power: ≤0.75%FS
Power regulation rate:
+ Voltage: ≤0.02%FS
+ Current: ≤0.05%FS
+ power: ≤0.05%FS
Setting value resolution:
+ Voltage: 10mV
+ Current: 0.1A
+ power: 1W
+ Internal resistance: 0.001 Ω
Readback value resolution:
+ Voltage: 10mV
+ Current: 0.1A
+ power: 1W
+ Internal resistance: 0.001 Ω
Setting value accuracy 12 months (25℃±5℃):
+ Voltage: ≤0.1%FS
+ Current: ≤0.2%FS
+ power: ≤1%FS
+ Internal resistance: ≤1 % of maximum resistance ± 1% of maximum current
Readback value accuracy 12 months (25℃±5℃):
+ Voltage: ≤0.2%FS
+ Current: ≤0.2%FS
+ power: ≤1%FS
+ Internal resistance: ≤1 % of maximum resistance ± 1% of maximum current
Ripple and Noise (20Hz-2MHz):
+ Differential mode voltage: ≤320mVp-p and 25mVrms
+ Differential mode current: ≤160mArms
Dynamic recovery time (50%-100% load): ≤1.5ms (recovery to within 100mv )
Remote sensing compensation: ≤0.5%FS
Power conversion efficiency: ≤93%
Size and weight:
+ Shell size (WxHxD) mm: 430 × 133 × 703.5
+ Overall size (WxHxD) mm: 483 × 133 × 793.5
Weight (net weight): 25.5kg
Power supply: 342VAC-528VAC , 44-66Hz
