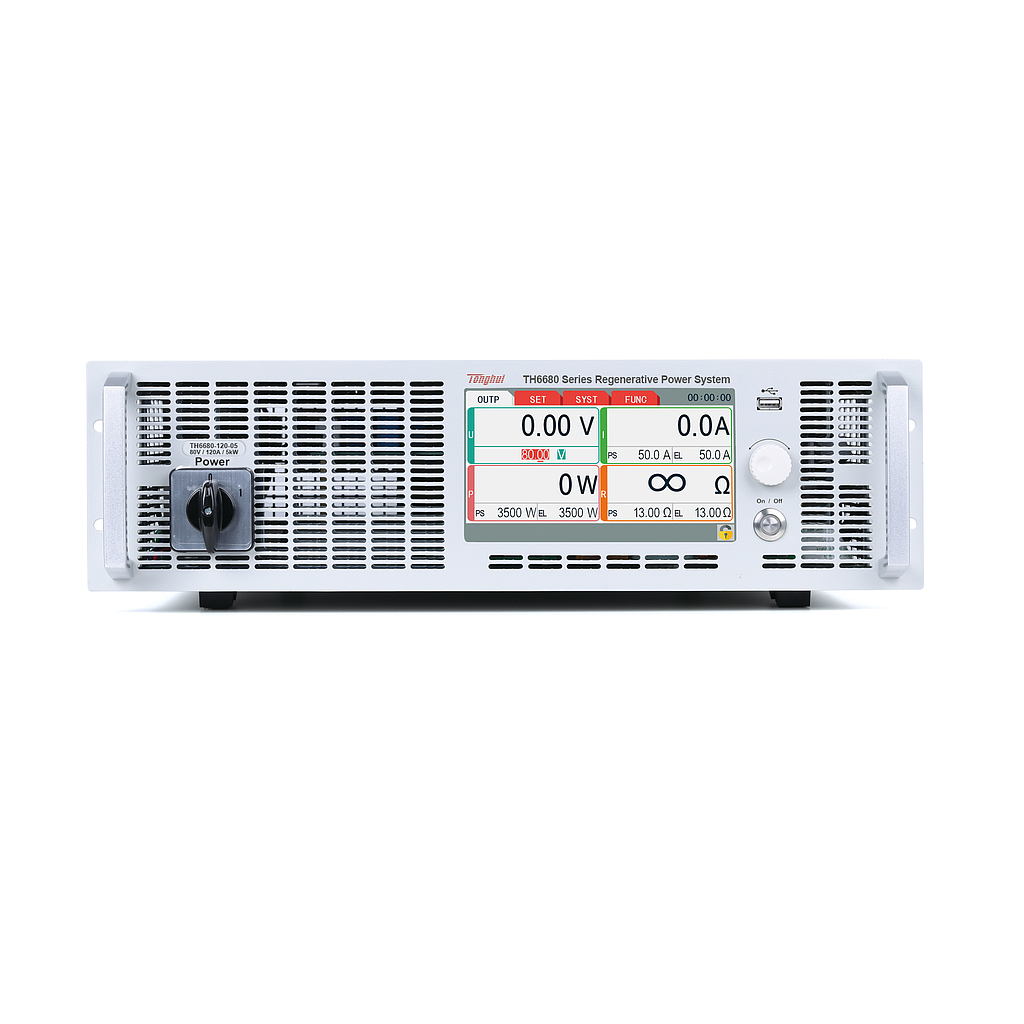

Tonghui TH6680-360-15 ແຫລ່ງຈ່າຍໄຟ DC ທີ່ມີກຳລັງສູງແບບສອງທິດທາງທີ່ສາມາດຕັ້ງໂປຣແກຣມໄດ້ (80V, 360A, 15kW)
Rated output (power mode):
+ Power: 0-15kW
+ Voltage: 0-80V
+ Current: 0-360A
+ Internal resistance: 0.006-10Ω
Rated input (load mode):
+ power: 0-15kW
+ Voltage: 0-80V
+ Current: 0-360A
+ Internal resistance: 0.006-10Ω
Load regulation rate:
+ Voltage: ≤0.05%FS
+ Current: ≤0.15%FS
+ power: ≤0.75%FS
Power regulation rate:
+ Voltage: ≤0.02%FS
+ Current: ≤0.05%FS
+ power: ≤0.05%FS
Setting value resolution:
+ Voltage: 10mV
+ Current: 0.1A
+ power: 1W
+ Internal resistance: 0.001Ω
Readback value resolution:
+ Voltage: 10mV
+ Current: 0.1A
+ power: 1W
+ Internal resistance: 0.001Ω
Setting value accuracy 12 months (25℃±5℃):
+ Voltage: ≤0.1%FS
+ Current: ≤0.2%FS
+ power: ≤1%FS
+ Internal resistance:
Readback value accuracy 12 months (25℃±5℃):
+ Voltage: ≤0.2%FS
+ Current: ≤0.2%FS
+ power: ≤1%FS
+ Internal resistance:
Ripple and Noise (20Hz-2MHz):
+ Differential mode voltage: ≤320mVp-p and 25mVrms
+ Differential mode current: ≤240mArms
Dynamic recovery time (50%-100% load): ≤1.5ms
Remote sensing compensation: ≤5% FS
Power conversion efficiency: ≤93%
Power conversion efficiency: ≤93%
Size and weight:
+ Shell size (WxHxD) mm: 430×133×703.5
+ Overall size (WxHxD) mm: 483×133×793.5
Weight (net weight): 32.5kg
Power supply: 342VAC-528VAC, 44-66Hz
