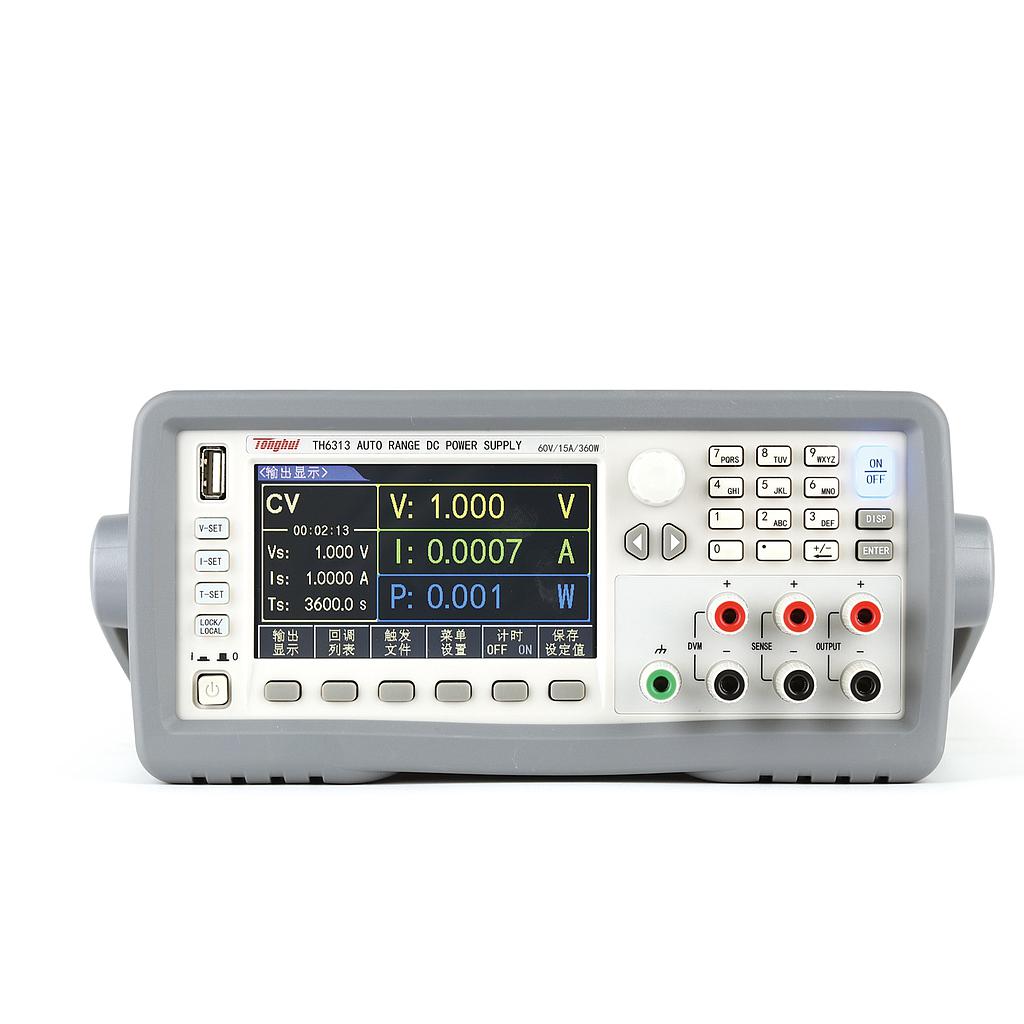

Tonghui TH6313 Wide Range Programmable Linear DC Power Supply (60V; 15A)
Rated Output:
- Voltage: 60V
- Current: 15A
- Power: 360W
Load regulation:
- Voltage: ≤0.01%+8mV
- Current: ≤0.01%+6mA
Power regulation:
- Voltage: ≤0.01%+8mV
- Current: ≤0.01%+6mA
Set Value Resolution:
- Voltage: 1mV
- Current: 1mA
Read-back resolution:
- Voltage: 1mV
- Current: 1mA
Year accuracy (25℃± 5℃):
- Programming:
Voltage: ≤0.03%+5mV
Current: ≤0.1%+15mA
- Readback
Voltage: ≤0.03%+5mV
Current: ≤0.1%+15mA
Ripple and Noise (20Hz-20MHz):
- Differential Mode Voltage: ≤15mVpp
- Differential Mode Current: ≤10mArms
Rise time (10% — 90%): ≤150mS
Fall time (90% — 10%): ≤2s
Memory: 10 groups of trigger output, 100 steps for each group,100 sets of setting memory
Output: Support front and rear panel output, the maximum output current of front terminal is 10A
