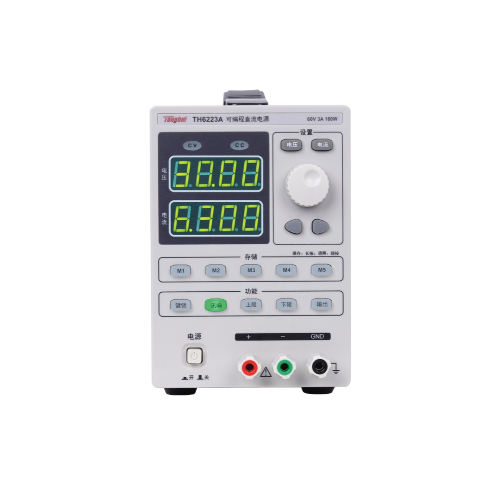

Tonghui TH6223A Linear Programmable DC Power Supply (0-60V / 0-3A / 180W)
Rated Output: 0-60V / 0-3A / 180W
Load Regulation ± (% Output + Bias): ≤0.01%+2mV / ≤0.02%+2mA
Power regulation ± (% Output + Bias): ≤0.01%+3mV / ≤0.01%+2mA
Programming resolution: 10mV / 1mA
Read-back value resolution: 10mV / 1mA
Programming Accuracy: ≤0.2%+10mV / ≤0.1%+5mA
Read-back value Accuracy: ≤0.2%+30mV / ≤0.1%+5mA
Ripple and Noise:
+ Vp-p : ≤15mV
+ Vrms : ≤2mV
+ Ip-p : ≤3mA
+ Irms : ≤1mA
Rise time (10% Load) 10%-90%: ≤100ms
Fall time (10% Load) 90%-10%: ≤80ms
Output Temperature Coefficient (Voltage/Current): ≤75ppm
Memory: 5 Groups (M1-M5). Automatic memory when power off.
Size (W×H×D) : 162mm×111mm×275mm
Weight: 6.4 kg
