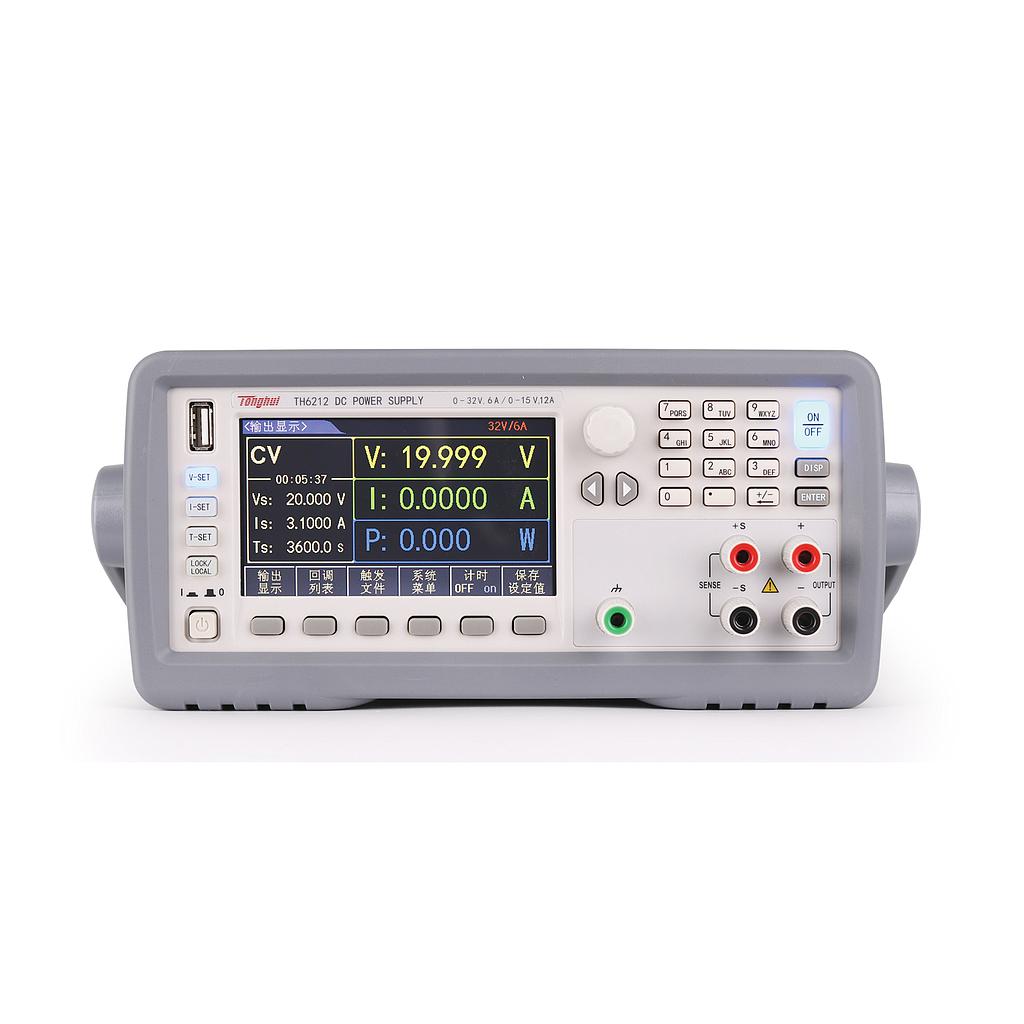

Tonghui TH6212 Double Range Programmable Linear DC Power Supply (0-32V/0-15V; 0-6A/0-12A)
Rated Output (0℃-40℃):
Channel/Range: Range1/Range2
- Voltage: 0-32V/0-15V
- Current: 0-6A/0-12A
- Power: 192W/180W
Load regulation ± (% Output + Bias):
- Voltage: ≤0.01% + 6mV
- Current: ≤0.01% + 5mA
Power regulation ± (% Output + Bias):
- Voltage: ≤0.01% + 6mV
- Current: ≤0.01% + 5mA
Programming resolution:
- Voltage: 1mV
- Current: 0.1mA
Read-back value resolution:
- Voltage: 1mV
- Current: 0.1mA
Year accuracy (25℃± 5℃) ± (% Reading + Bias):
- Programming:
Voltage: ≤0.04% + 8mV
Current: ≤0.1% + 5mA
- Readback
Voltage: ≤0.04% + 8mV
Current: ≤0.1% + 5mA
Ripple and Noise (20Hz-20MHz):
- Normal mode voltage: ≤4mVrms or 1mVp-p
- Normal mode current: <10mArms
- Common mode current: <1.5µArms
Rise time (10% — 90%): <120ms
Fall time (90% — 10%): <350ms
Timer: 0.1 ~ 99999.9 seconds
Memory: 10 groups of trigger output, 100 steps for each group,100 sets of setting memory
