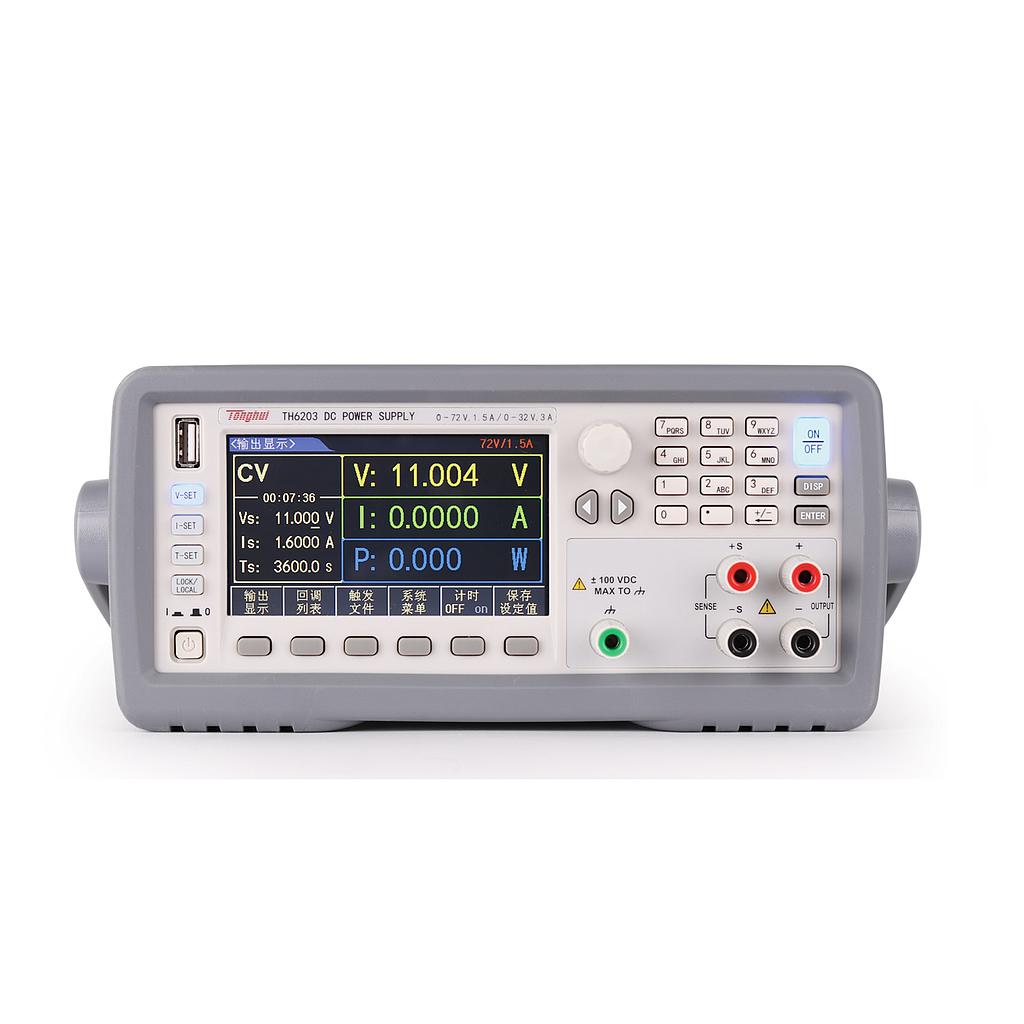

Tonghui TH6203 Double Range Programmable Linear DC Power Supply (0-72V/0-32V; 0-1.5A/0-3A)
Rated Output (0℃-40℃):
Channel/Range: Range1/Range2
- Voltage: 0-72V/0-32V
- Current: 0-1.5A/0-3A
- Power: 108W/96W
Load regulation ± (% Output + Bias):
- Voltage: ≤0.01% + 3mV
- Current: ≤0.01% + 2mA
Power regulation ± (% Output + Bias):
- Voltage: ≤0.01% + 3mV
- Current: ≤0.01% + 2mA
Programming resolution:
- Voltage: 1mV
- Current: 0.1mA
Read-back value resolution:
- Voltage: 1mV
- Current: 0.1mA
Year accuracy (25℃± 5℃) ± (% Reading + Bias):
- Programming:
Voltage: ≤0.04% + 8mV
Current: ≤0.1% + 5mA
- Readback
Voltage: ≤0.04% + 8mV
Current: ≤0.1% + 5mA
Ripple and Noise (20Hz-20MHz):
- Normal mode voltage: ≤3mVrms or 1mVp-p
- Normal mode current: <6mArms
- Common mode current: <1.5µArms
Rise time (10% — 90%): <90ms
Fall time (90% — 10%): <250ms
Timer: 0.1 ~ 99999.9 seconds
Memory: 10 groups of trigger output, 100 steps for each group,100 sets of setting memory
