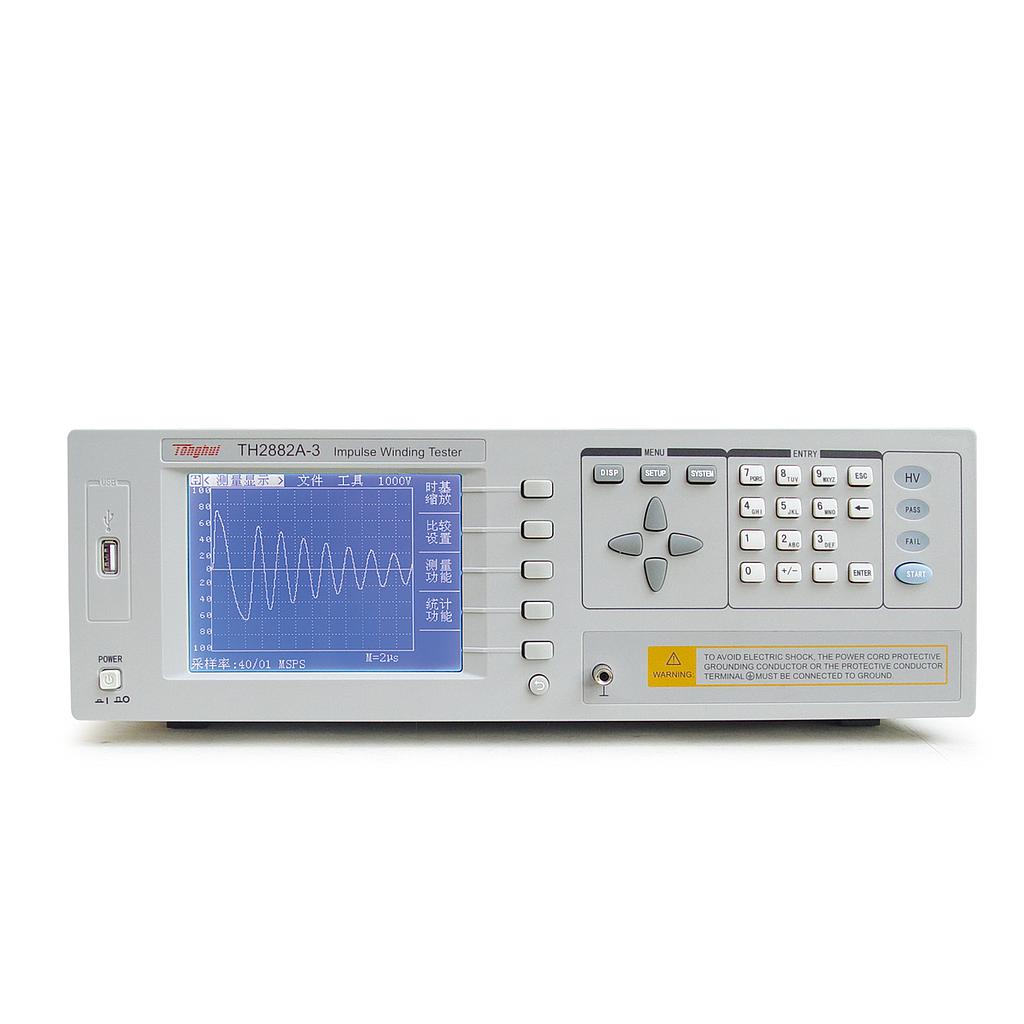

Tonghui TH2882A-3 Impulse Winding Tester (300V-3000V)
Output Impulse Voltage: 300V-3000V, 50V Steps ± 5% of set value ± 15V
Impulse Energy (1KΩ Resistive Load): ≤ Max. 90 milli-Joules
Type of Coil: Single-phase
Inductance Range: ≥ 10μH
Display
- Screen Mode: 320x240 dots LCD
- Waveform Display Dots: 240x200 dots
- Display Information: Setting parameter, Standard & measuring waveform, Measurement & comparison result
Waveform Sampling
- Sampling Rate: 40MSPS/25ns, 20MSPS/50ns, 10MSPS/100ns, 5MSPS/200ns, 2.5MSPS/400ns, 1.25MSPS/800ns, 625kSPS/1.6μs, 312kSPS/3.2μs
- Resolution: digits
- Sampling Length: Bytes
Input Impedance: 10MΩ (Resistive voltage divider)
Measuring Speed:
- 5.5 times/sec (Waveform display OFF, PASS/FAIL ON)
- 3.3 times/sec (Waveform display ON, PASS/FAIL ON)
Interface: HANDLER (Start, Stop, Pass NG, Busy, EOC, etc.), RS232C, GPIB(optional)
Operating Temperature and Humidity: 0°C−40°C, ≤90%RH
Power Requirements:
- Voltage: 99V - 121V AC,198V - 242V AC
- Frequency: 47.5Hz−63Hz
Power Consumption: ≤ 40VA
Dimensions (W×H×D): 395mmx155mmx445mm
Weight: Approx. 7.6 kg
