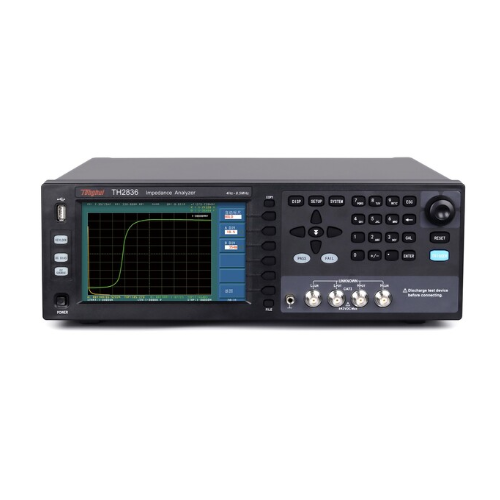

Tonghui TH2836 ເຄື່ອງວັດແທກຄວາມຖີ່ສູງທາງດ້ານເສດຖະກິດ LCR (4Hz-8.5MHz)

Display: 7 inch TFT LCD Display 800×RGB×480

AC Parameters: Cp/Cs, Lp/Ls, Rp/Rs, |Z|, |Y|, R, X, G, B, θ, D, Q, Vac, Iac

DC Parameters: Rdc, Vdc, Idc

Test Frequency:

+ Range: 4Hz-8.5MHz

+ Resolution: 1mHz

Test Electric Level

+ AC Voltage: 4Hz-1MHz：5mV-2Vrms

1MHz-8.5MHz：5mV-1Vrms

+ Resolution: 100μV

+ AC Current : 4Hz-2MHz：50μA-20mArms

2MHz-8.5MHz：50μA-10mArms

+ Resolution: 1μA

+ DC Voltage: 100mV-2V

+ Resolution: 100μV

DC Bias

+ Voltage: 0V-±10V

+ Resolution: 100μV

+ Current: 0mA-±100mA

+ Resolution: 1μA

Cs, Cp : ±1.00000aF-999.999EF

Ls, Lp: ±1.000000aH-999.999EH

D: ±0.00001-9.99999

Q: ±0.01-99999.9

R, Rs, Rp, X, Z, Rdc: ±1.00000aΩ-999.999EΩ

G, B, Y: ±1.00000aS-99.9999ES

Vdc: ±1.000000aV-999.9999EV

Idc: ±1.00000aA-999.999EA

θr: ±1.00000rad-3.14159rad

θd: ±0.0001deg-180.000deg

Δ%: ±0.0001%-999.999%
