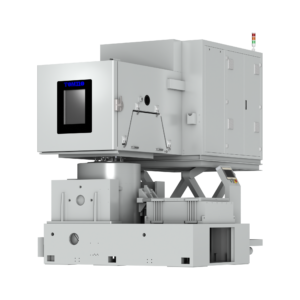

Tomilo TOSH-960JXL Temp / Humid / Vibration Test Chamber (960L; -70~150℃; 10~98%RH)

Supporting Vibrating Table(W*Dmm)W*Dmm: 500*500

Inner SizeW*D*Hmm: 960L（1000*1200*800）

Point to point HEAT and COOL Line rate: 1℃/min

Tempreture range: -70~150℃

Rate acceptance range:  -40~150℃

Humidity range: 10~98%RH

temperature uniformity: ≤2℃

Humidity deviation: ±3.0%RH(＞75%RH) ±5.0%RH(≤75%RH)

Tempreture deviation: ≤±2℃

temperature fluctuation: ≤±0.5℃

Humidity fluctuation: ≤±2.0%RH

Temperature Accuracy: 0.1℃

"Humidity accuracy: 0.1%RH"

Box Moving Mechanism: X type electric lifting platform

Cooling Method: Water-cooling

Interior Material: SUS304 stainless steel

Exterior Material: SPCC+ Powder coating

Insulation Material: Glass wool + phenolic foam board

Refrigerant Model: Environmental refrigerant R404A, R23

Standard Reference: GB/T2423.1; GB/T2423.2; GB/T2423.3; GB/T2423.4; GB/T5170.2; GB/T5170.5;GB/T11158; GB/T10589; GB/T10592; GB/T10586; IEC 60068-3-5
