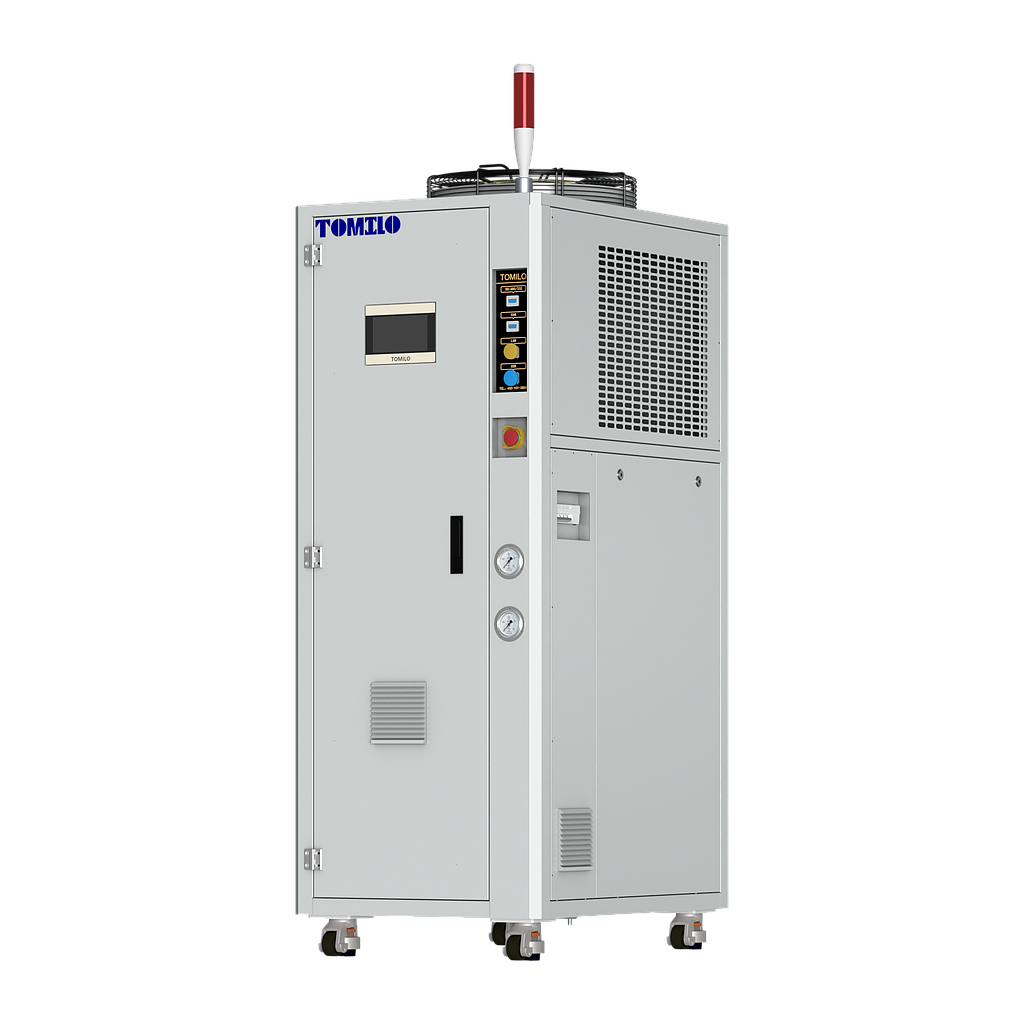

Tomilo TOLS-40-30100W ຫນ່ວຍຄວບຄຸມອຸນຫະພູມ (5-50L/min)

Flow range: 5-50L/min

Temperature range: -40℃～+100℃

temperature control accuracy: ±0.5℃

TEMPERATURE DISPLAY: 0.1℃

Cooling medium: Ethylene glycol antifreeze, freezing point below -30 ℃

Flow control accuracy: ±0.2L/min

Flow display: 0.01L/min

Pressure control range: 0-250kPa

Pressure control accuracy: ±2kPa

pressure display: 0.1kPa

Heating power: 30KW

Refrigeration capacity:

20℃: 40KW

0℃: 40KW

 -20℃: 20KW

 -30℃: 11KW

 -40℃: 5.5KW

Average cooling speed (off-load): 8℃/min

Average heating speed (off-load): 8℃/min

Operation interface: 7 inches

Media interface: DN20

Cooiling type: Water cooling

Cooling water requirements: 7000L/H

Cooling water interface requirements: G1 1/2

size（W*D*H：mm）: 1100*1500*1800

voltage: AC380V/50Hz

Power supply interface requirements: Five core aviation plug/socket

Program temperature/flow/pressure control: 40 programs can be programmed, each program can be programmed with 40 steps, and linear or nonlinear programming can be selected for program control

curve display: Set temperature curve, supply temperature curve, return temperature curve, set pressure curve, supply pressure curve, return pressure curve, set flow curve, supply flow curve

Data storage (process data): Set temperature value, supply temperature value, return temperature value, set pressure value, supply pressure value, return pressure value, set flow value, supply flow value, liquid level value

Data storage (alarm data): Sensor abnormal alarm, high temperature protection, low temperature protection, high pressure protection, low pressure protection, low liquid level alarm, high liquid level alarm, heating rod anti dry burning alarm, etc

Alarm indicator light: Three color indicator light, red: abnormal; Green: running; Yellow: standby

data export: USB2.0/3.0 export, standard 16G USB drive

communication interface: CAN/RS485/RS232/LAN

Optional function: Automatic liquid filling function; Purge and recover coolant; emptying function
