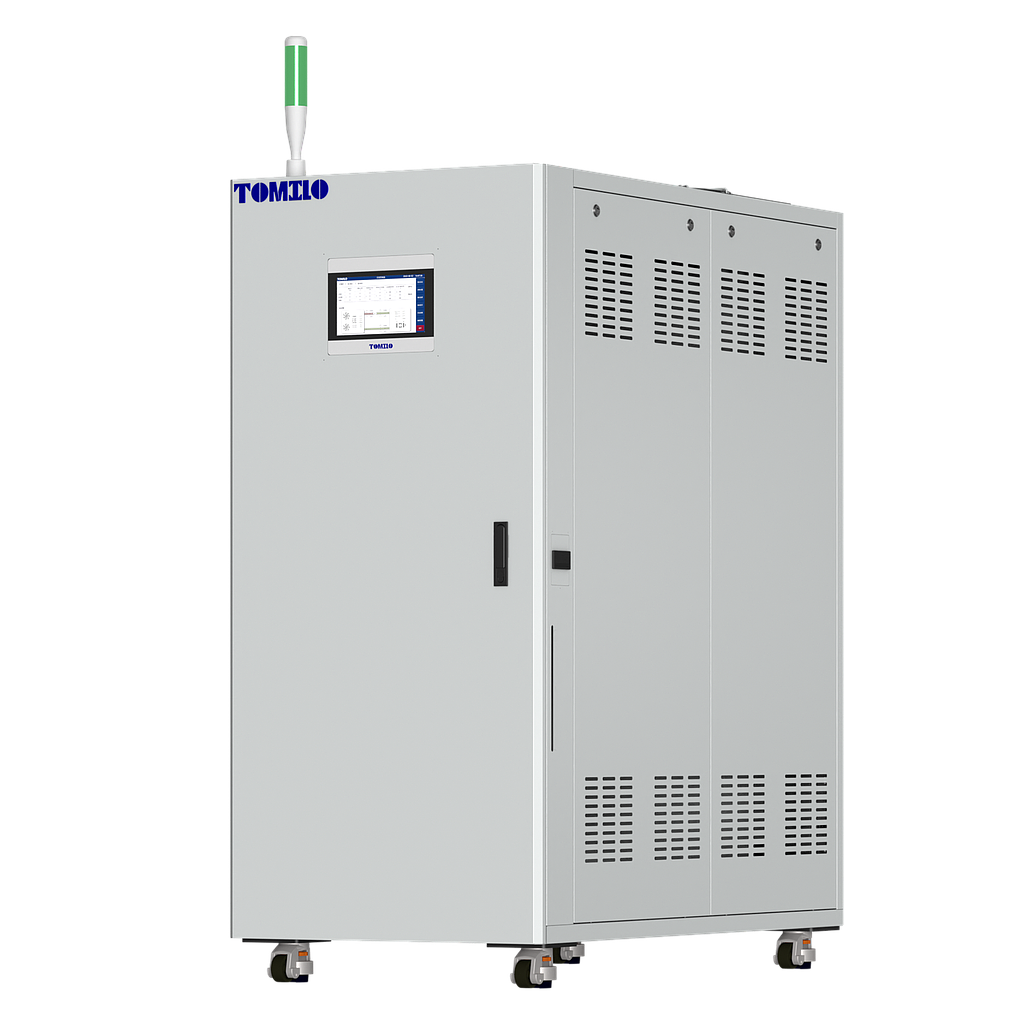

Tomilo Cooling and Heating Test Bench Bench ທົດສອບຄວາມເຢັນແລະຄວາມຮ້ອນ (10 ~ 55℃)

Temperature Control Range: 10 ~ 55℃ (cooling mode 10-25℃, heating mode 40-55℃)

Temperature Control Accuracy: ±1℃

Temperature Ratio: 0.1℃

Pressure Control Range: 0.3～2.0MPa

Pressure Control Accuracy: ±20kPa (Low Pressure), ±60kPa (High Pressure)

Refrigerant Flow Control Range: 0～300kg/h

Refrigerant Flow Control Accuracy: 0.1%FS

Superheat Control Range: 0~ 15℃ (cooling mode) 0~5℃ (heating mode)

Superheat Control Accuracy: ±1℃

Superheat Overtravel: ≤±5℃

Superheat Response Time: ≤5min (excluding first peak superheat)

Subcooling Control Range: 0~ 10℃ (cooling mode) 0~5℃ (heating mode)

Subcooling Control Precision: ±1℃

Supercooling Overtravel: ≤±5℃

Superheat Response Time: ≤5min

Data Acquisition Frequency (Max): ≤1Hz

Cooling Style: Air cooling

Communication Interface: LAN/CAN/CANFD/RS485 multi-mode communication

External Dimension(W*D*H mm): 1000*1500*1850mm
