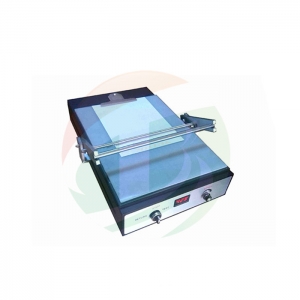

TOB TOB-XT-200CA ເຄື່ອງເຄືອບຟິມອັດຕະໂນມັດຄວາມກວ້າງ 300 ມມ (0-200 mm/sec)
Working Voltage: 110V AC or 208 - 240V AC 50/60Hz Single Phase
Power: 200W
Traverse Speed: 0 - 200 mm/sec, variable
Max. Coating Dimensions: 430*300mm (L*W)
Coating base size: 570 * 340mm (L * W)
Platform: Glass bed for coating
Coating thickness: Coating film by precision wire bar（Thinnest coating film thickness up to 1.5µm）
Coating wire bar size
Diameter : 10mm
Length: 400mm
Effective coating width:300mm
Product Dimensions: 570mm(L) * 340mm(W) * 100mm(H)
Net Weight: 20kg
Application Notes
Rolling is absolutely necessary to ensure good density and adhesion of electrode materials to the current collector substrate after coating. Please select a rolling press from here.
You may need a vacuum oven to dry the films after coating
You may need a vacuum mixer to remove air bubbles inside the slurry and to make all coatings uniform
You may need a Slurry Viscosity Tester to make coatings consistent
