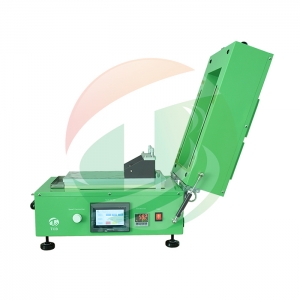

TOB TOB-VFC-150 ເຄື່ອງເຄືອບເງົາດ້ວຍເຄື່ອງອົບແຫ້ງ (0-100mm/s)
Source voltage: AC110V-240V, 50/60HZ
Power: 650W
Coating speed: 0-100mm/s, Step-less transmission Accuracy: 10mm/sec
Advantages: Supply with dry function, vacuum pump
Stroke length: 10 - 250 mm adjustable by using Adjustable Position Switch
Platform
Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 300mm (L) * 200mm (W) * 30mm (T)
Slicker width: 0-150mm
Slicker adjustable range: 0.01-3.5mm
Heating dry system: RT-200°C, Digital temperature controller
Temperature control accuracy: ±1°C
Dimension: 500*350*320mm
Weight: About 40kg
Package size: 790*540*600mm
Package weight: 65kg
Remark
One oil-less vacuum pump is inset
Heating system : Installed on the top cover
Built in digital temperature controller with accuracy of +/-1°C
Suspension support helps open cover easily and safely.
Max. Heating Rate:10°C/min
Max. Heating Temp.:200°C
One 150mm width micrometer adjustable film applicator
Traverse Pusher is included for pushing the Film Applicator to ensure the constant coating speed
