Source voltage: 110V AC or 240V AC 50/60Hz
Power: 1500W

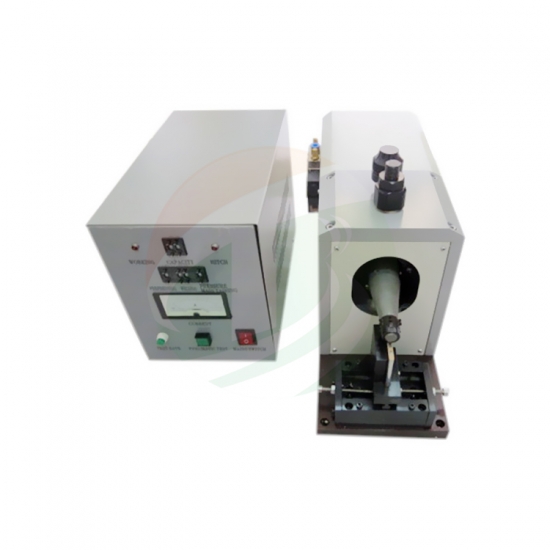

Type: Ultrasonic spot welding machine
Product dimension: 450*230*160mm
Control box dimension: 330*190*250mm
Package size: 600*420*500mm, About 55kg
Frequency: 24KHZ
Welding head material: W6M5Cr4V2 high-speed steel, with six welding points in one head.
Working stroke: 15mm
Welding time: 0.5-2s
Control mode: CPU Control
Air supply: ≥0.5MPa (≥72.5psi)
Welding ability
1, For copper : 0.15~2+0.15~2mm.
2, For aluminum : 0.2~3+0.2~3mm.
3, For Nickel : 0.1~1.2+0.1~1.2mm.
Main accessories
1, “Welding head”-6pcs, 2 “Connect line”-2pcs, 3”Foot pedal”-1pcs
4, “Power line with customized plug”-1pcs,
5, “Gas-pressure meter”-1pcs
