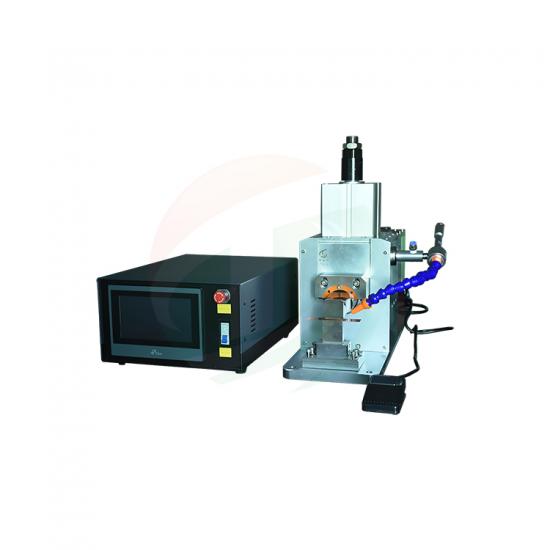

TOB TOB-USW-8000W ຫມໍ້ໄຟເຄື່ອງເຊື່ອມ Ultrasonic ສໍາລັບແຜ່ນ Electrode 10-120 ຊັ້ນ (8000W)
Power: 8000W
Frequency: 20KHZ
Power supply: 220V/ 50Hz
Gas supply: ≥0.5MPa
Control method: CPU
Maximum stroke: 20 mm
Welding time: 0.05～9S
Main components
1. Ceramic sheet: German imported black film
2. Aluminum rod: American Aluminum Corporation
3. Welding head: powder alloy
Datasheet
Welding ability | ①10~120 layer aluminum foil + 0.2-0.6mm pure aluminum tab welding, welding spot4*6 /4*8 /4*10mm /5*30mm |
②10~120 layer copper foil + 0.2-0.6mm nickel or copper nickel platedtab welding, welding spot4*6 /4*8 /4*10mm /5*30mm | |
③0.2-0.6mm nickel or nickel-plated coppertab,can weld with 10~90 layers of copper foil, welding spot4*6 /4*8 /4*10mm | |
④0.2-0.6mm aluminum tab, can weld with 10~90 layers of aluminum foil, welding spot4*6、4*8、4*10mm | |
⑤0.2-0.6mm aluminum tab or nickel tab 2~12 layers welding, welding spot4*6mm | |
⑥0.2-0.6mm aluminum strip and2.0mm aluminum plate welding |
