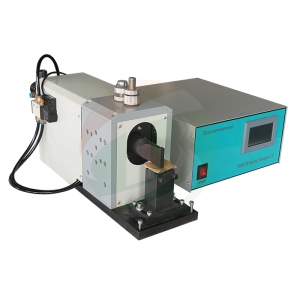

TOB TOB-USW-40KHZ ເຄື່ອງເຊື່ອມຈຸດ Ultrasonic ສໍາລັບ Electrode Anode (800W, 40KHZ)
Source voltage: 110V AC or 220V AC 50/60Hz
Power: 800W
Type: Ultrasonic metal welding machine
Frequency: 40KHZ
Control mode: Pneumatic, with air supply 0.5-0.7Mpa
Welding thickness: 0.09mm～0.012mm copper foil+0.1mm nickel tab
Welding size: Standard size is 3*3mm*3, can also customized according request
Working humidity: 35%-85%
Working temperature: 0℃-40℃
Structure: Adopt the solid crystal type, with functions of automatic frequency trackingWith overcurrent, overheating, mismatch alarm
Dimension
Controller: 380mm(L) * 340mm(W) *250mm(H)
Welder: 490mm(L) *170mm(W) *240mm(H)
Weight
Welder : 40kg
Controller : 10kg
