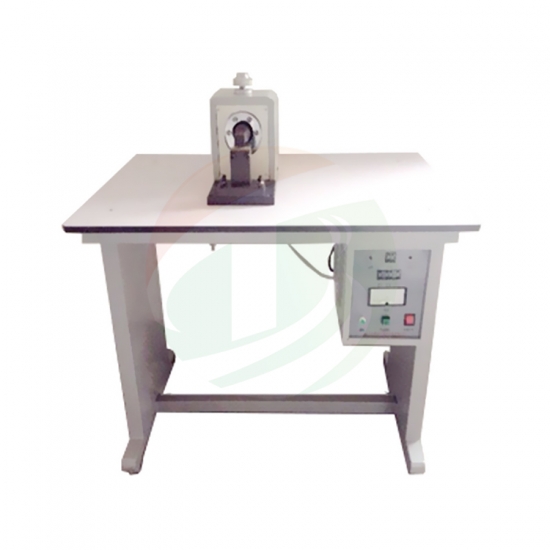

TOB TOB-USW-24KHZ ເຄື່ອງເຊື່ອມຈຸດ Ultrasonic ສໍາລັບ Cathode Electrode (1500W , 24KHZ)
Source voltage: 110V AC or 240V AC 50/60Hz
Power: 1500W
Type: Ultrasonic spot welding machine
Frequency: 24KHZ
Working stroke: 15mm
Welding time: 0.05-2s
Control mode: CPU Control
Air supply: ≥0.5MPa (≥72.5psi)
Welding ability
1 Prismatic battery Aluminum shell 0.1mm aluminum strip welding with 1-3mm aluminum plate,
welding area 3*3mm or 3*4mm single point welding,3 * 3 mm double point 8 mm long;
2 Cathode electrode 0.02mm aluminum foil + 0.1m alumin tab 3*25mm or 3*4*25mm welding;
4 Nickel aluminum composite band and the bottom of the aluminum plate or shell two point welding, 3*3mm 3*4mm welding.
Main accessories
1, Ceramic chip from Germany
2, Aluminum bar from USA
3, Single chip microcomputer from Netherlands
4, Welding head Titanium alloy and 6542 type
