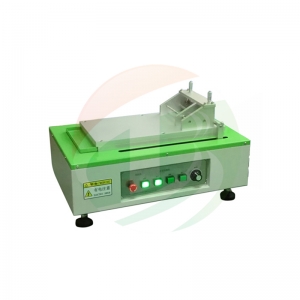

TOB TOB-TM300 150mm Width Automatic Film Coater (0-100 mm/sec)
Working Voltage: 110V AC or 208 - 240V AC, 50/60Hz, Single Phase
Power: 200W
Traverse Speed: 0 - 100 mm/sec variable
Accuracy: 10mm/sec
Max Stroke: 300 mm
Max. Coating Dimensions: 150mm(W) * 300mm(L)
Platform
Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 410mm(L) * 200mm(W) * 30mm(H)
Film Applicator
One 150 mm width Micrometer Adjustable Film Applicator is included, with adjustable thickness from 0.01 mm - 3.5 mm
Traverse Pusher is included for pushing the doctor blade to ensure constant speed coating
Product Dimensions: 550mm(L) * 310mm(W) * 330mm(H)
Net Weight: 50kg
Application Notes
Rolling is absolutely necessary to ensure good density and adhesion of electrode materials to the current collector substrate after coating. Please select a rolling press from here.
You may need a vacuum oven to dry the films after coating
You may need a vacuum mixer to remove air bubbles inside the slurry and to make all coatings uniform
You may need a Slurry Viscosity Tester to make coatings consistent
