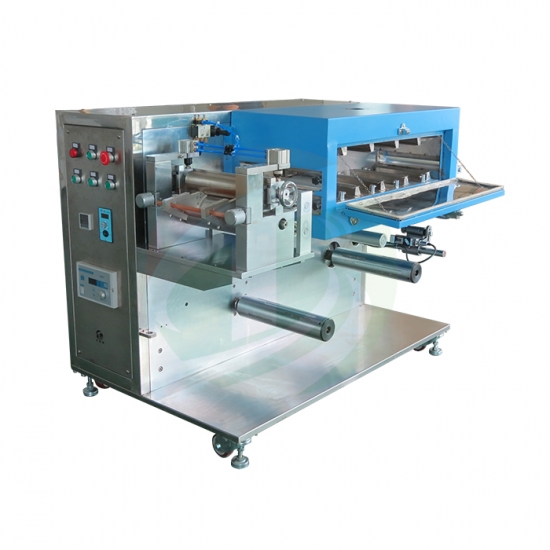

TOB TOB-TBJ-200 ເຄື່ອງເຄືອບຫ້ອງທົດລອງສໍາລັບຫມໍ້ໄຟ electrode (180mm Width)
Source voltage:AC 110v/220v, 50HZ/60HZ
Power: 3000W
Coating mode: Continuous coating
Max coating width: 180mm
Applicable matrix thickness
Aluminum foil : 11-30um
Copper foil : 8-30um
Mechanical tape speed: ≤ 5m/min, with accuracy ± 0.1m/min
Coating speed: 0-750 mm / minute, adjustable
Coating thickness: 30-200um
Applicable slurry viscosity: 1500-15000cps
Coating roller accuracy: ≤ 1um
Coating accuracy
Double dry thickness accuracy error: < ±4um
Single side dry thickness accuracy error: < ±2um
Double coated alignment error: < ±0.5mm
Average length of error: < ±0.5mm
Roller inner diameter: 3inches
Tension control: Low friction tension system
Struggle to control precision: <±0.3mm
Oven temperature: 120°C adjustable, with accuracy ±1°C, Independent PID adjustable
Oven Length: 800mm
Weight:450kg
Dimension(L*W*H): 900 * 800 * 900mm
