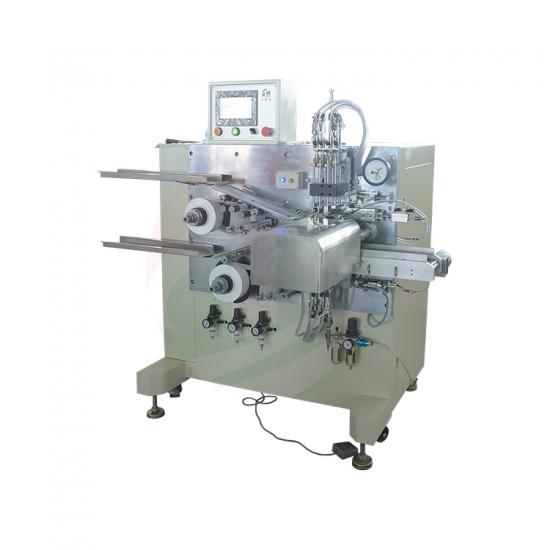

TOB TOB-SJR-18650 (21700) ແບດເຕີລີ່ກະບອກສູບເຄິ່ງອັດຕະໂນມັດເຄື່ອງ winding (Φ12mm-Φ32mm)
Voltage: AC220V,1.5KVA,50HZ
Compressed air: 0.4-0.6MPa
Productive capacity: 8PCS/min
Weight: About 500kg
Size: 1660mm*1300mm*1570mm(Does not include the outstretched length of the electrode.)
Winding needle specification: Φ1.5mm-Φ9mm(With one set for free, customized)
Applicable outer diameter of the cell: Φ12mm-Φ32mm
Equipment capacity: 6~15 pcs/ min (according to the length/width of the electrode)
Winding precision
When the electrode is guaranteed to meet the following conditions:
The width error is less than ±0.2mm;
The bending error of "S" is less than ±1mm/500mm;
The tower shape error of the separator is less than ±0.2mm;
The winding precision can be satisfied
The alignment error of the separator is less than ±0.5mm;
The alignment error of electrode is less than ±0.5mm;
It can realize the negative electrode wrap the cathode electrode, the separator wrap negative electrode, and the alignment of the finished product section is ±0.5mm
Qualified rate: ≥98% (excluding equipment factors)
