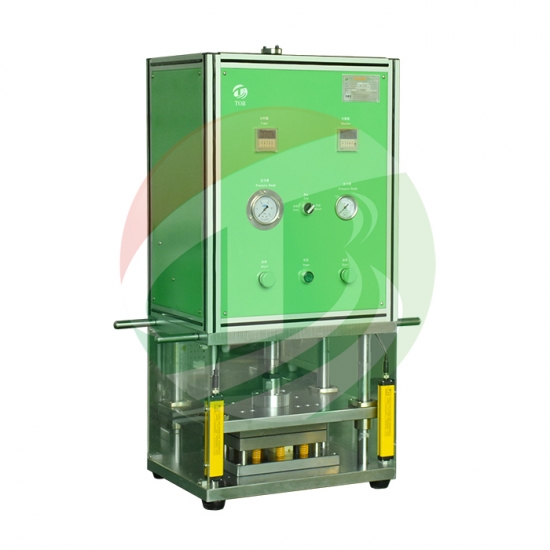

TOB TOB-SCK200 Lab Polymer Battery Pouch ເຄື່ອງກອບເປັນຈໍານວນ (160*120mm)

Source voltage: AC 220V/110V, 50/60HZ

Power: 100W

Suitable aluminum film thickness: 0.1-0.2mm

Suitable aluminum film size: 160*120mm(L*W), customized, with punching depth ≤6mm

Max. Cup Depth to Punch: Single pit punching depth ≤6mm

Output: 200-400EA/H

Output pressure : 3T

Air source: 0.5-0.7MPa

Mold materials: S136 Die steel

Dimension(L*W*H): 460*320*925mm

Weight: About 130kg

Datasheet

Advantages

1, Structure of guide pin, slide up and down smoothly with high precision

2, Change mould, adjust tensile depth simply, quickly

3, Use screen and casing protection, guarantee safety

4, High strength of chrome steel and aluminum alloy, surface roasts the paint processing through environmental protection electroplating
