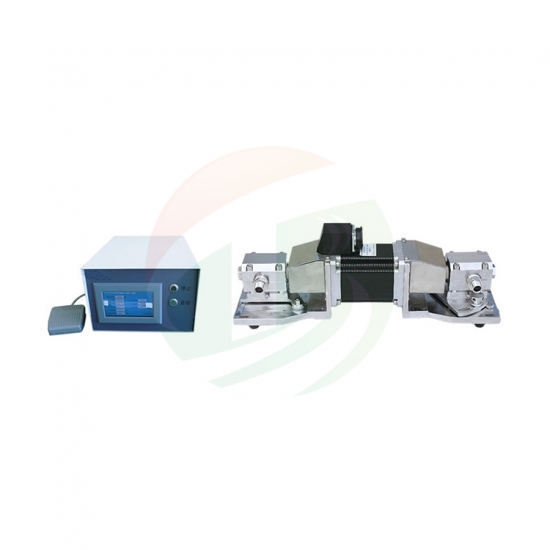

TOB TOB-S1876 ປັ໊ມຊັ້ນນໍາໄຟຟ້າຫົວສອງສໍາລັບ Electrolyte (0-1876 microl)
Type: Rotating reciprocating positive displacement special ceramic injection pump
Speed (r/min): 18-1000, According to system configuration and fluid characteristics
Stroke number: 1-10000 times, According to system configuration and fluid characteristics
Ceramic Pump
Materials: Using nanotechnology and gel injection molding processing and molding technology, the microstructure uniformity, high density
Pump core technology: High precision polishing processing, do not need to seal and lubricating oil
Pump core performance: High temperature resistance, wear resistance, acid and alkali resistance, high hardness and low coefficient of friction
Capacity range: Double pump, Max0-1876 microlitre/one stroke
Ceramic pump sleeve: SUS316 stainless steel
Filling accuracy: Within 5‰
Import and export pipeline: Standard (liquid into the tube diameter 6 mm, outside diameter of 8 mm, tube inner diameter 4 mm, outside diameter 6 mm)
Dimension: 270*120mm*145mm (L*W*H)
Weight: About 2.8kg
Controller Box
Source voltage: AC110V/220V, 50/60HZ Single phase
Power : 200W
Dimension: 290*210*145mm (L*W*H)
Weight: 4.3kg
Standard interface: I/O, RS232, CC TRIG, AUX OUT (optional pedal)
Safety performance: Password protection and factory restore function to ensure setting parameters can not be changed arbitrarily
