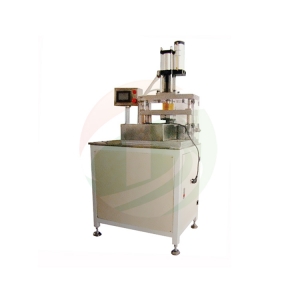

TOB TOB-PX-OE-A18 ເຄື່ອງປິດຝາກະບອກໄຟຟ້າ (0.6-0.8MPa)

Source voltage: AC110V/220V, 50/60HZ customized

Power: 200W

Air source: 0.6-0.8Mpa

Crimping Dies

Suitable diameter size: φ14-26mm

Suitable Height: 35-70mm

Wish changing Die can sealing all kinds of cylinder battery such as CR123 /18650 / 26650 / 32650 / AA /AAA

Structure

Semi-auto sealing for cylinder cell

With Touch screen and safety protection device

Output: 25-35pcs/min

Datasheet

Application Notes

Customized die for other cylindrical cell types is available upon request

It is necessary to groove the opening end of the cylindrical case by using the TOB-GC650 grooving machine before sealing the cap

Each type of cylinder cell can only be sealed specifically by certain model of equipment.

Please select the type of cylinder cell in the Product Options drop box to check the model number and price for the corresponding crimping die of each cylinder cell type
