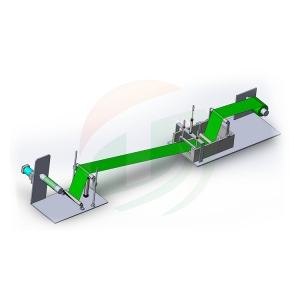

TOB TOB-PVDF-DC-LAB Battery Separator Coating Machine For Lab (100-200mm)
Source voltage: AC 220V/110V, 50HZ/60HZ
Power: 200W
Battery separator
Width: 100-200mm
Thickness: 16um-40um
Biggest bear tension: 1.0kg/cm
Max temperature: 100℃
Max roller diameter: 200mm
Equipment function
1, Easy to install and replace volumes
2, Uniform machine speed 1-3M/min adjustable
3, With Infrared heating drying fucntion
Coating box size: 600*400*180mm, with about 10L volume coating materials
Heating temperature: Max 100℃, adjustable
Heating mode: With horizontal drying ways
Auto unreel
Homemade tensioning device
Inflatable axle diameter φ75mm
Auto reel
Inflatable axle diameter φ75mm
120 W speed regulating motor
Air source: 0.6-0.8MP
Dimension (L*W*H): 740*460*800mm and 740*460*1250mm
Weight: About 200kg
